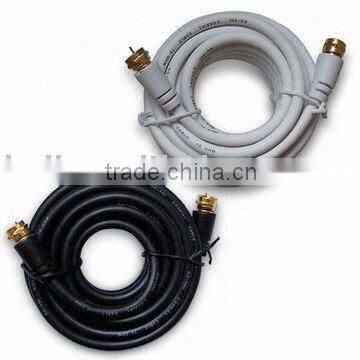

RG6/U Coaxial cable(RG6 Cable,Cable RG6,Coaxial cable RG6 with plug,used for household TV System

Specifications

Key Specifications:

                      Center conductor: 1.02mm BC(18 AWG)

                      Dielectric: 4.7mmFPE

                      Shielding foil: Al Foil

                      Outer conductor: 96 *0.12mm AL-mg

                      Jacket: 6.8mm PVC

                      Cable length can be 10m,15,17m,25m,35m

                                         or according to the customer's request

                      BC: bare copper

                      Al: aluminum

                      PVC: polyvinylchlorid

                      AL/pet: aluminum/polyester tape foil

                      P/FPE/P: HDPE inter skin, foamed polyethylene and HDPE outer skin

                      Impedance: 75 ±3 ohms

Notes:

                     Center conductor: TC, BC, CCA and CCS are available

                     Insulation: FPE and HDPE

                     Al-foil: Al/pet, Al/pet bonded, Al/pet/AL and Al/pet/AL bonded are available

                     Braiding wire: TC, BC, CCA and Al-MG are available

                     Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16 and 0.18mm available

                     Braiding net: 48, 64, 72, 80, 96, 112 and 128 are available

                     Braiding coverage: between 30 to 100% available

                     PVC: 60, 65, 70 and 75 degrees, white, black and other colors are available

                     F--Connector:female--male;both of them are female

Operating temperature range: 20 to 75°C

Nominal mutual capacitance: © 1kHz to ≤ 56nF/100m

Flame test: CMX, CM, CMG and CMR

Nominal velocity of propagation: 85%

Maximum conductor DC resistance © 20 to 21.1Ω/100m

Certificates: ISO9000, CE and RoHS
