Home > Products > RICHTEK > RICHTEK RT8809AGQW,RT8809AZQW RT8809A(07=ED,07 ED,07 EF,07 ...) QFN-24,Multi-Phase PWM Controller for GPU Core Power Supply

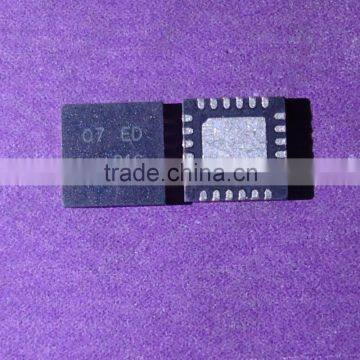

RICHTEK RT8809AGQW,RT8809AZQW RT8809A(07=ED,07 ED,07 EF,07 ...) QFN-24,Multi-Phase PWM Controller for GPU Core Power Supply
- 2500 Piece / Pieces per Month
- SZ HK
- Credit Card PayPal
You May Like
-
RICHTEK Model code:07= (07=FE,07=FF,07=FC ...) QFN-28
-
RICHTEK RT9387AGQW RT9387A(07N,07R,07B,07W,07 ...) QFN-20,700mA Charge Pump Flash LED Driver with Safety Timer
-
RICHTEK RT8243BZQW RT8243B(7A EC,7A EF,7A EE ...) QFN-20,High Efficiency, Main Power Supply Controller for Notebook Computers
-
RICHTEK RT8809BGQW,RT8809BZQW RT8809B(08 EE,08=EE,08=EF,08= ...) QFN-24,Multi-Phase PWM Controller for GPU Core Power Supply
-
RICHTEK RT8243AZQW RT8243A (8A EE,8A EF,8A EC...),High Efficiency, Main Power Supply Controller for Notebook Computers
-
RICHTEK RT9625BZQW RT9625BGQW RT9625B (09 EF,09 EC,09 ED,09=EF ...) Dual-Channel Synchronous Rectified MOSFET Driver
Product Details
| D/C | 10+ | Package | QFN | |
| Model Number | RT8809AGQW | Type | Drive IC | |
| Brand Name | RICHTEK | Place of Origin | Taiwan, China |
Product Description
The RT8809A/B is a dual-phase synchronous buck PWM controller with integrated drivers which are optimized for high performance graphic microprocessor and computer applications. The IC integrates a G-NAVPTM PWM controller, two 12V MOSFET drivers with internal bootstrap diodes, as well as output current monitoring and protection functions into the WQFN-24L 4x4 package. The RT8809A/B adopts DCR and RDS(ON) current sensing. Load line voltage positioning (droop) and over current protection are accomplished through continuous inductor DCR current sensing, while RDS(ON) current sensing is used for accurate channel current balance. Using both methods of current sampling utilizes the best advantages of each technique. The RT8809A/B also features a one-bit VID control operation in which the feedback voltage is regulated and tracks external input reference voltage. Other features include, adjustable operating frequency, external compensation, and enable/shutdown functions.
Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.
Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
