Home > Products > RICHTEK > RICHTEK RT8208FGQW RT8208F (31=EE 31=EC 31=ED ...) Programmable Output Voltage Single Synchronous Buck Controller

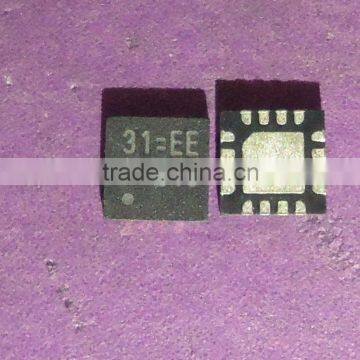

RICHTEK RT8208FGQW RT8208F (31=EE 31=EC 31=ED ...) Programmable Output Voltage Single Synchronous Buck Controller
- 2500 Piece / Pieces per Month
- SZ HK
- Credit Card PayPal
You May Like
-
RICHTEK RT8237AGQW RT8237AZQW RT8237A (37 EG,37=EG,37=EF,37= ...) High Efficiency Single Synchronous Buck PWM Controller
-
RICHTEK RT8075GQW RT8075 (38 ED,38=ED,38=EF,37= ...) Dual 1A, 1.25MHz Synchronous Step-Down Converter
-
RICHTEK RT8078AGQW RT8078A (42=ED,42=EF,42=EC,42= ...) Dual 1A, 1.25MHz Synchronous Step-Down Converter
-
RICHTEK Model code:44=, (44=ED,44=EF,44=EM,...) QFN-28
-
RICHTEK RT8228BGQW RT8228BZQW RT8228B RT8228, (44G,44F,44K,...) Single Synchronous Buck PWM Controller
-
RICHTEK RT9519BGQW RT9519B (46=EG 46=EF 46=EC ,...) Linear Single Cell Li-lon Battery Charger with Auto Power Path Management
Product Details
| D/C | 10+ | Package | QFN | |
| Model Number | RT8208FGQW | Type | Drive IC | |
| Brand Name | RICHTEK | Place of Origin | Taiwan, China |
Product Description
The RT8208E/F is a constant-on-time PWM controller which provides four resistor programmable DC output voltages by controlling the G0 and G1 digital input. The output voltage is programmable from 0.75V to 3.3V. The RT8208E/F offers the lowest total solution cost in systems where need output voltage slewing. The RT8208E/F provides an automatic masking power good output during output voltage transition.
The constant-on-time PWM control scheme handles wide input/output ratios with ease and provides 100ns "instant-on" response to load transient while maintaining a relatively constant frequency. It provides the high efficiency, excellent transient response, and DC output accuracy needed for stepping down high voltage batteries to generate low voltage CPU core, graphics, I/O and chipset RAM supplies in notebook computers.
The RT8208E/F achieves high efficiency at a reduced cost by eliminating the current sense resistor in traditional current mode PWMs. Efficiency is further enhanced by its ability to drive very large synchronous rectifier MOSFETs. The buck conversion allows this device to directly step down from high voltage batteries for the highest possible efficiency. Additional features include soft-start, under voltage protection, programmable over current protection and non-overlapping gate drive. The RT8208E/F is available in a WQFN-16L 3x3 package.
Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.
Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
