Home > Products > RICHTEK > RICHTEK RT8223NGQW RT8223N (11 EC,11 EF,11 EE ...) High Efficiency, Main Power Supply Controller for Notebook Computer

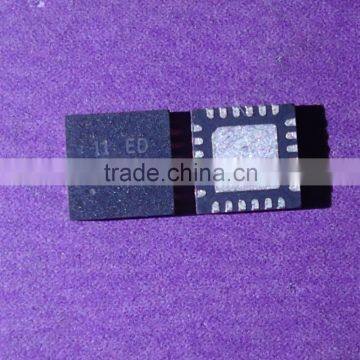

RICHTEK RT8223NGQW RT8223N (11 EC,11 EF,11 EE ...) High Efficiency, Main Power Supply Controller for Notebook Computer
- 2500 Piece / Pieces per Month
- SZ HK
- Credit Card PayPal
You May Like
-
RICHTEK RT8061AZQW RT8061A (11 ED,11 EF,11 EE ...) 3A, 1MHz, Synchronous Step-Down Converter
-
RICHTEK RT8068AZQW RT8068A (13 ED,13 EE,11 EF ...) 3A, 1MHz, Synchronous Step-Down Converter
-
RICHTEK RT9986GQW RT9986 (13=DB,13=DE,13=DF ...) 7-CH DC/DC Converter for DSC
-
RICHTEK Model code:14 (14 EC,14 EF,14 ED ...) QFN-28
-
RICHTEK Model code:14 (14 EE,14 EC,14 ED ...) DFN-10
-
RICHTEK Model code:17 (17 EE,17 EC,14 ED ...) DFN-10
Product Details
| D/C | 10+ | Package | QFN | |
| Model Number | RT8223NGQW | Type | Drive IC | |
| Brand Name | RICHTEK | Place of Origin | Taiwan, China |
Product Description
The RT8223N is a dual step-down, switch-mode power supply controller generating logic-supply voltages in battery-powered systems. It includes two Pulse Width Modulation (PWM) controllers adjustable from 2V to 5.5V, and also features fixed 5V/3.3V linear regulators. Each linear regulator provides up to 100mA output current with automatic linear regulator bootstrapping to the PWM outputs. The RT8223N includes on-board power up sequencing, a power good output, internal soft-start, and soft-discharge output that prevents negative voltage during shutdown.
The constant on-time PWM scheme can operate without sense resistors and provide 100ns load transient response while maintaining nearly constant switching frequency. To eliminate noise in audio applications, an ultrasonic mode is included, which maintains the switching frequency above 25kHz. Moreover, the diode-emulation mode maximizes efficiency for light load applications. The RT8223N is available in a WQFN-24L 4x4 package.
Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.
Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
