SY50E Slotting Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	EMM
Model Number	SY50E

Features

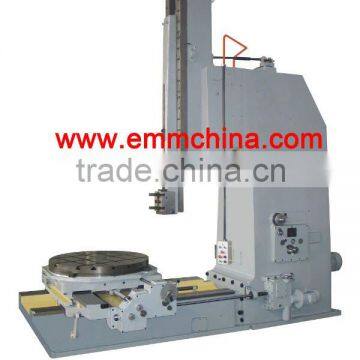

SY50E Slotting Machine
Being designed for cutting various planes, formed surface and key way of workpiece, the machin

Technical Data

Description	SY50E
Max.stroke length cf ram	500	mm
Min.stroke length cf ram	125	mm
Max.slotting length	500	mm
Distance cf vertical adjust of ram	430	mm
Extreme high speed for work stroke cf ram	22	m/mim
Extreme low speed for work stroke cf ram	5	m/min
Speed ratio of work stroke and return stroke of ram	1:1.45
Speed adjust for work stroke	stepless
Max.slotting force	19.6	KN
Dstance from tool holding surface to column front	1032	mm
Dstance from worktable surface to underside of slide rack	740	mm
Max.longitudinal travel of worktable	1000	mm
Max.transverse travel of worktable	660	mm
Diameter of worktable	φ800	mm
Inclination cf ram	0-10	.
Range of vertical feed(sterless)	0-1.5	mm
Range of horizontal feed(sterless)	0-3	mm
Range of rotary feed(sterless)	0°~1°15′	mm
Max loading weight on worktable	2000	kg
T-slot width in the center of worktable	22HB
Power and rotating speed cf main motor	11KW,940r/min
Power and rotating speed cf motor for rapid move cf table	1.5KW,940r/min
Type cf motor for cooling pump	DB-12B 40W 380V
Net weight(approx)	11000	kg
Dimensions cf machine tool (Length×Weight×High)	3460×2010×2548	mm

3.Working Accuracy

Flatness of machined surface on tested workpiece	0.015	mm
Verticality of machined surface on tested workpiece	0.025	mm
Surface roughness on tested workpiece	6.3	mm
Verticality of machined side surface on tested workpiece against base	0.02	mm
