Home > Products > Turret Punch Press > SF1225A1 cnc turret punching machine
SF1225A1 cnc turret punching machine
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Power Source | Other, servo | Place of Origin | Jiangsu, China | |
| Brand Name | EMM | Model Number | SF1225A1 | |
| Voltage | 380V | Power(W) | 30 000 | |
| Weight | 14 | Dimension(L*W*H) | 4995x2736x2250 | |
| Certification | ISO 90001 | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. high accuracy and efficiency2. FANUC 0i-P
3. 32 sets tools
4. turret punch press
c turret punching machine

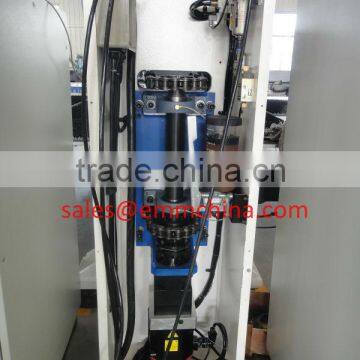

SF1225A1 cnc turret punching machine
CNC servo punch press with high accuracy and efficiency. The world’s most advanced technologies integrated. It’s a perfect combination of newest control technology and conventional mechanism. It is an ideal equipment in numerically controlled metal fabrication industry and has such features as high automation, high productivity, stable feature, safe and reliable, save energy, etc.. All these make the machine unique and unmatched in China.
| No | Specification | Unit | SF1225A1 | SF1250A1 | SF1550A1 |
| 1 | Nominal force | kN | 250 | ||
| 2 | Max. punch size | mm | F88.9 | ||
| 3 | Max. sheet size | mm | 1250×2500 | 1250×5000 | 1500×5000 |
| 4 | Max. sheet thickness | mm | 6 | ||
| 5 | Max. sheet weight | kg | 100 | ||
| 6 | Punching accuracy | mm | ±0.1 | ||
| 7 | Ram stroke | mm | 32 | ||
| 8 | X/Y traverse length | mm | 1250/1250 | 1250/2500 | 1500/2500 |
| 9 | Max.punching frequency | min-1 | 1200 | 1200 | 1200 |
| 10 | Max. positioning speed | m/min | X=80,Y=80 | ||
| 11 | Turret rotation speed | r/min | 30 | ||
| 12 | Number of tool stations | set | 32 | ||
| 13 | Number of floating clamps | set | 2 | 3 | |
| 14 | CNC system | FANUC | |||
| 15 | Monitor | 10.4²Color monitor | |||
| 16 | Electrical energy(AC 380V ) | kVA | 30 | ||
| 17 | Air consumption | m3/min | 0.05 | ||
| 18 | Air pressure | MPa | ≥0.5 | ||
| 19 | Machine dimensions(approx) | mm | 4995×2736×2250 | 4995(5245)×5260×2250 | |
| 20 | Machine weight(approx) | Tons | 14 | 15 | |
EMM’s is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.
