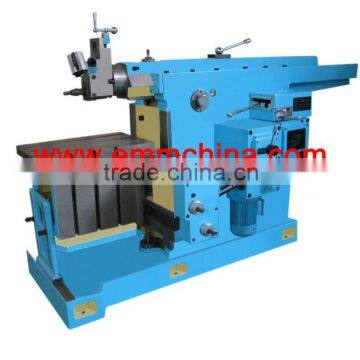

B63B Shaping Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	EMM
Model Number	B63B

Features
B63B Shaping Machine
Being designed for cutting various planes, formed surface and key way of workpiece, the machi

Technical Data

Description	B63B
Max.shaping length	650	mm
Max.range of the borizontal movement of the table	630	mm
Max.distance between the ram bottom and table	380	mm
Max. length of the vertical movement of table	315	mm
Dimensions of table top:length×width	630×400	mm
Max.stroke length of the toolhead	120	mm
Swivel angle of the toolhead	+ -60°	(°)
Max.section of tool(W×H)	20×30	mm
Number of ram reciprocation per minute	14-80	No../min
Range of table feed:: horizontal vertical	0.2-2.5 0.08-1	mm/recip
Speed of rapid travel of table: horizontal vertical	0.95 0.38	m/min
Width of the T-slot for center positioning	18	mm
Power of the main motor	3	KW
Power of the motor for rapid travel of table	0.55	KW
Net weight (approx.)	2200	kg
Dimensions of machine tool (Length×Width×High)	2382×1210×1504	mm

3.Working Accuracy

Flatness of machined surface on tested workpiece	0.025	mm
Parallelism of machined surface on tested workpiece to base	0.03	mm
Parallelism of machined surface on the side tp that on the other side on tested workpiece	0.05	mm
Verticality of machined side surface on the side of tested workpiece against base	0.02	mm
Surface roughness	6.3
