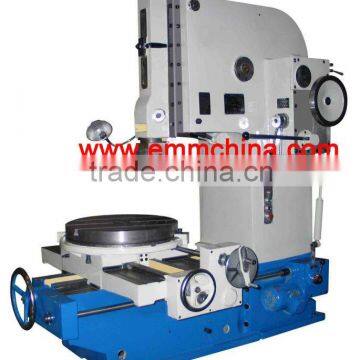

S32E slotting machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	EMM	Model Number	S32E
Certification	CE	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Being designed for cutting various planes, formed surface and key way of workpiece,

S32E slotting machine

Description		S32E
Max.slotting length	mm	320
Number of ram reciprocation per minute	No. /min	20,32,50,80
Inclination of ram	°	0—8
Diameter of worktable	mm	φ630
Adjusting vertical distance of slide block	mm	370
Distance from tool holding surface to column front	mm	600
Distance from worktable surface to underside of slide rack	mm	495
Max. longitudinal travel of worktable	mm	620
Max. transverse travel of worktable	mm	560
Max. rotary angle of worktable	(°)	360
Feed range of worktable in longitudinal & transverse direction	mm	0.054-1.24
Rotary feed range of worktable	(°)	0.035-0.805
Max size of slotting tool (Length×High)	mm	25×40
Max. slotting force	KN	8
Max loading weight on worktable	kg	500
T-slot width in the center of worktable	mm	18 H8
Power supply of main electric motor	KW	3
Speed of main motor	r/min	960
Power of motor for rapid traverse	KW	0.75
Speed of motor for rapid traverse	r/min	1390
Net weight (approx)	kg	2500
Dimensions of machine tool	mm	1930×1365×2270
(Length×Width×High)	mm	1930×1365×2270
