Waste Tyre Recycling Plant
- QINGDAO
- T/T
You May Like
-
Tires recycle machine line, tires recycling plant
-
Rubber Cracker / Crumb Rubber Making Machine
-
Fully Automatic Rubber Powder Making Machine from waste tyre
-
Waste Tyre Recycling Production Line
-
Waste Car/truck Tire Shredder Machine And Recycling Line
-
Full Automatic Rubber Powder Making Machine/waste Tire Recycling
Product Details
| Condition | New | Type | Other, Rubber crushing mill | |
| Place of Origin | Shandong, China | Brand Name | JINRUNQI | |
| Model Number | XKP-560 | Voltage | 220V 360V as your request | |
| Power(W) | 575kw | Dimension(L*W*H) | 4750*2300*2000 | |
| Weight | 18500KG, 7500-18500kg | Certification | CE ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

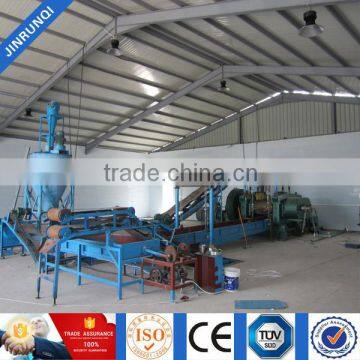

semi automatic waste tyre recycling machine
Step one:
cut the waste tyre into 3-5CM glue pieces.
Waste tire pretreating system includes Ring cutter, Loop machine, strip cutter and block cutter.
1-1. Ring cutter 1 set
Function: whole tire cutting into tire crown, the side of the tire and inner circle
Item | Specification |
Motor power | 5.5 KW |
Speed of main screw | 46.8 r/min |
MAX Diameter of tyre | 1200mm |
Dimension | 1100*900*1700mm |
Weight | 300kg |
1-2. Loop machine 1 set
Function: tires circle wire centrifuges, mouth will tire of coarse steel mouth circle parts with rubber effective separation
Item | Specification |
Motor power | 15 KW |
Linear speed of front roller | 15.5 m/min |
Ratio of speed | 1.1 |
Dimension | 1520*1150*12101mm |
Weight | 1300kg |
1-3.Strip cutter 1 set
Function: various tire, glue, glue board piece cut into long strip
Item | Parameter |
Motor Power | 5.5kw |
Disc Diameter | 380mm |
Rotate Speed | 18.4r/min |
Dimension | 1290*870*1550 |
Weight | 720kg |
1-4. Block cutter 1 set
Functions: this machine should cut machine tyres, used for supporting the use of the strip cut into 3-5CM glue pieces.
Item | Specification |
Motor power | 11kw |
Speed of main screw | 420 r/min |
Out diameter of cutter | 200mm |
Dimension | 1130*830*1100 |
Weight | 420kg |
Step two:
rubber powder processing
Rubber powder treatment system includes rubber crusher, Main conveyor, Small conveyor, Double-deck magnetic separator, Single-deck Magnetic, Main vibrating sieve, Small vibrating sieve and Fiber Processing Equipment.
1-5.Rubber crusher 1 set
Main type if the rubber crusher: XKP-400,XKP-450,XKP-560
Model | XKP-560 |
Working diameter of front roller(mm) | 560 |
Working diameter of rear roller(mm) | 510 |
Working length of rollers(mm) | 800 |
Working linear speed of front roller(m/min) | 25.56 |
Friction ratio of front and rear roller | 1:1.30 |
Max gap | 8 |
Capacity (kg) |
1500 |
Power(KW) | 90 |
Overall size(l*w*h) | 5064*2284*1978 |
Weight(kg) | 19000 |
1-6. Big conveyor equipment
To conveyor the rubber block into crusher.
motor power:2.2kw
The length of conveyor: 8000mm
The width of belt: 550mm
speed:40m/min
1-7. Small conveyor equipment:
Motor power:1.1kw The length of conveyor: 3m
The width of belt: 400mm Speed: 30m/min
1-8. Big Magnet separator:
Purpose: separate the steel small block from the rubber powder.
Motor power: 1.1kw Intensity of magnetic field: 60
The width of belt: 400mm Speed: 30m/min
Magnetic roll: 2 sets (Permanent magnetic)
1-9.Small magnetic separator :
Intensity of magnetic field: 60
Motor power:1.1kw The width of belt: 400mm
Speed:30m/min Magnetic roll: 1 set (Permanent magnetic)
1-10.Fiber separator:
The machine adopts airflow separation principal, It is able to efficiently separate minor fiber from the rubber granules.
Of course, If you only have steel tires, So You will not need to buy this machine, because steel tire have not nylon fiber
Model | XFJ-1100 |
capacity | 300-500kg/h |
Diameter of impeller | 1100mm |
Number of lamina | 8 pieces |
Rotate speed of main axis | 400r/min |
Motor power | 5.5 kw |
Dimension | 1.5x1.5x6.5m (L*W*H) |
Packaging Details:We pack the machine product according to the customer requirements,it's suitable for the long-term transportation.
Delivery Detail:within 30-60 days receiving advance payment
After Sales Service:
1. We will offer you one year guarantee
2. We will give you reply and solution within 24 hours.
We can produce all kinds of rubber machines according to client's requirements.
Qingdao JINRUNQI Rubber Machinery Industry Co.,LTD
Our main business is designing and making all kinds of rubber machine,such as rubber tile vulcanizing press, waste tire recycling production line ,plate vulcanizing press,frame type plate vulanizer, vacuum vulcanizing press,large plate vulcaninzer,conveyer belt production line ,and rubber mixing mill,rubbercrushing mill, rubber refining
mill and so on.
With many years producing and selling experiences, we try our best to produce high quality, high standard products based on aim, of which is "strive for survival by quality; produce by technology; creat market by good faith; be famous all over the world by brand".our products are sold to all over the world, and they are approved by our customers.
...
