Waste Tire Recycling To Fuel Oil Machine

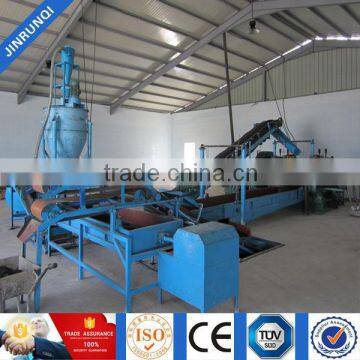

 Waste Tyre Recycling machine

 We have both the full automatic production line and

                     the semi automatic production line.

Welcome to visit our factory!

About Jinrunqi Rubber Machinery Co.,Ltd

Our company was founded in 2007. Our main business is designing and making nonstandard vulcanizing press. We started tire recycling business in 2010.

 We have exported to Russia, Ukraine, Kazakhstan, Vietnam, UAE, Saudi Arabia, India, Iraq, Turkey, Indonesia, Brunei etc.

About machines.

 Process tires size 600-1200mm

 Final granule size 5-24 mesh, Purity ≥99.7%

 3 operator + 1 maintainer is enough

 Space for installn is about 300-400m*m

 Installation takes about 15-20 days

 Delivery needs 1*20 GP + 1*40 OT

Warranty time is 1 year and life time maintain service

1.Semi-auto  recycling production line

Semi-auto Waste tire recycling system includes Ring cutter, Loop machine, strip cutter and block cutter.

This product line is used to produce the waste tyre into rubber powder or rubber crumb. Through ring, strips , rim cutter ,processing tyre into 3.5cm block, Second, Separating the steel and rubber from tire circle mouth parts. Thirdly, using XKP400/450/560 tire crusher, Then using rubber screen, magnetic system and conveyer, It can be made 10-30 mesh powder.

1.The whole tyre cutting stage

This stage contains 4 machines, ring cutter, strips cutter, block cutter, steel wire separator.

1-1.Ring Cutter: Cut the sidewall and the top of tire's connection

           Motor power: 5.5KW

          Capacity: 40-60PCS/Hour

           Dimension(mm): 1100*900*1700mm

          Weight(kg): 300

1-2.Steel Separator: Separate the steel and rubber from tire circle mouth parts.

        Motor power: 15 KW

       Capacity: 60PCS/Hour

       Dimension(mm):  1520*1150*1200 mm

       Weight(kg): 1300

Strips cutter: Cut sidewall into wide of strips is 3-5cm, and tire circle reserved

           Motor power: 5.5KW

           Capacity: 1700meters/Hour

           Dimension(mm):  1290*870*1550mm

           Weight(kg): 720

Block cutter:  Cut the 3-5cm strips into 3.5cm tire block

            Motor power: 11KW

             Capacity: 1ton/Hour

             Dimension(mm):  1130*830*1100mm

            Weight(kg): 420

 2. Full-auto  recycling production line

This stage contains 3 machines, tyre wire extractor,tyre cutting machine, tyre shreder.

2-1 . Tire wire extractor(tire debeader):

It is mainly use to extract the steel wire from tyre rim.

Model: LS-1200

Capacity:40-60 tires/hour

Pulling force(T): 13 Tons

Max.tire diameter:600mm-1800mm

Power(KW): 11 KW

Operation way: hydraulic system

Stroke distance: 2000mm

Dimension(L*W*H):4.1*0.78*1.02m

Weight:about 1600KG

1-2. Tire cutting machine:

1-3. Tire shredder:

this machine is a special equipment for crushing waste steel wire radial tire under normal temperature, used for take out the steel wire of tire in the scope of the size.

Technical details:

 3.rubbe rcrusher machine

XKP400
XKP450

XKP560

Strucutre

1. This machine is mainly used to crush/crack/shred waste tire and waste rubber, for breaking, plasticizing and mixing rubber materials, the structure is open gear transmission.

2.Our products are simple and rational in structure, beautiful in shape, easy to install and operate, reasonable in price ,safe and credible.

3.The rollers are made of chilled cast iron with wear-resistant hard surface. The two rollers are grooved. The bored rolls can be cooled homogeneously through inputting steam and cooling water. The two rollers rotate reversely with different speed, so that rubber material can be processed.

The main techincal parameter

The main use is for car tyres,  rubber ground, plan railway, rubber track, and so on.

Pictures for reference

About us

   Qingdao Jinrunqi Rubber Machinery locates in Wangtai Industrial Zone, Jiaonan, Qingdao. The traffic is very convenient. It near Qianwan Port and railway. It also near Tongsan High way in the west and 204 National Road in the east. The main products of the company are: rubber mixing mill with all kinds of type, rubber cracker, plate vulcanizer, rubber cutter, and so on. Also we can make non-standard rubber machinery as customers’ requirements?

   With many years producing and selling experience, we try our best to produce high quality, high standard products based on aim, of which is “ strive for survival by quality; produce by technology; creat market by good faith; be famous all over the world by brand”. Our products are sold to all over the country, and they are approved by our customers.

   Our chief manager Fanfan welcome everyone to visit and negotiate business, let you come happily, go back satisfactorily on the basis of high quality product and warm service.

Certification
