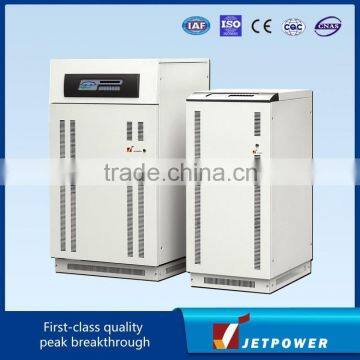

Whale Series Low Frequency Online UPS Power Supply(6KVA~200KVA)
Negotiable
/ Piece
1 Piece(Min. Order)
- QINGDAO or according to the customer's requirements
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | JETPOWER | |
| Model Number | MPT | Phase | Three Phase | |
| Protection | Overvoltage | Output Voltage | 380VAC | |
| Type | Other, On-line, Low frequency | Application | Medical |
Product Description
Specifications
Capacity: 6KVA to 200KVA380Vac/3phase in & 3phase Out
380Vac/3phase in & 1phase out
Function Features:
1) DSP digital control technology
2) Advanced IGBT inverter technology
3) Pure on-line double conversion technology
4) Perfect protection
5) Redundant Parallel Function
6) Powerful communication system
7) Low self-consumption and high efficiency
8) Pre-alarm system
9) Friendly display
10) Wide AC input range
11) Powerful overload ability
Technical Specifications
Technical Specifications
(1)Whale 8~100K, three-in/single-out
| Power (KVA) | 8 | 10 | 15 | 20 | 30 | 40 | 60 | 80 | 100 | |
| Input | Nominal voltage | 400Vac, three phase | ||||||||
| Voltage range | ±20% | |||||||||
| Frequency range | 50/60Hz+5%(Auto sense) | |||||||||
| Power factor | >0.95 | |||||||||
| Soft startup | 10seconds | |||||||||
| Bypass | Nominal voltage | 230Vac, single phase | ||||||||
| Allowable voltage | +/-15% (+/-10% ~ +/-25%, settable thru LCD) | |||||||||
| Nominal frequency | 50/60Hz (auto sense) | |||||||||
| Allowable frequency | +/-2% (+/-1% ~+/-5%, settable thru LCD) | |||||||||
| Battery | Voltage | 384V | 432V | |||||||
| Max.charge current | 0.2A*C10 | |||||||||
| Output | Rated power (kVA) | 8 | 10 | 15 | 20 | 30 | 40 | 60 | 80 | 100 |
| Active power (kW) | 6.4 | 8 | 12 | 16 | 24 | 32 | 48 | 64 | 80 | |
| Nominal voltage | 230Vac, single phase (220~240, settable) | |||||||||
| Voltage regulation | +/-1% (static); +/-5% (dynamic) | |||||||||
| Nominal current (A) | 35 | 43 | 65 | 87 | 130 | 174 | 261 | 348 | 434 | |
| Frequency | 50/60Hz (settable) | |||||||||
| Frequency regulation | +/-0.05% (Battery mode); | |||||||||
| Crest ratio | 3:1 | |||||||||
| Wave form | True sine wave | |||||||||
| Overload | 110% for 5hrs, 125% for 10mintues, 150% for 1mintue | |||||||||
| Interface | Contact relay | Dry contact relay | ||||||||
| Communication | RS232 | |||||||||
| Remote control | Emergency power off, bypass | |||||||||
| Noise | 50dBA, 1m | 53~62dBA, 1m | ||||||||
| Degree of Protection | IP20 | |||||||||
| Ambient | Temperature: 0~40℃, <95% no condensation | |||||||||
| Efficiency | ≥95% | |||||||||
| Safety & EMC | Safety: EN62040-1; EMC: EN62040-2 ClassA 73/23-93/68-89/336 EEC EN62040-3 | |||||||||
| Physical | Weight(kg) (Excluding battery) | 178 | 185 | 215 | 232 | 248 | 330 | 490 | 560 | 720 |
| Size(H*W*D,mm) | 550*720*1200 | 800*740*1400 | 1200*800*1800 | |||||||
(2) Whale 6~200K, three-in/three-out
| Power (KVA) | 6K | 10K | 15K | 20K | 30K | 40K | 50K | 60K | 80K | 100K | 120K | 160K | 200K | |
| Input | Nominal voltage | 400Vac, three phase | ||||||||||||
| Voltage range | ±20% | |||||||||||||
| Frequency range | 50/60Hz+5%(Auto sense) | |||||||||||||
| Power factor | >0.92 | |||||||||||||
| Current THD | <5% | |||||||||||||
| Soft startup | 10seconds | |||||||||||||
| Bypass | Nominal voltage | 400Vac, Three phase | ||||||||||||
| Allowable voltage | +/-15% (+/-10% ~ +/-25%, settable thru LCD) | |||||||||||||
| Nominal frequency | 50/60Hz (auto sense) | |||||||||||||
| Allowable frequency | +/-2% (+/-1% ~+/-5%, settable thru LCD) | |||||||||||||
| Battery | Voltage | 384V | 432V | 480V | ||||||||||
| Max.charge current | 0.2 * C10 | |||||||||||||
| Output | Rated power (kVA) | 6 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 160 | 200 |
| Active power (kW) | 4.8 | 8 | 12 | 16 | 24 | 32 | 40 | 48 | 64 | 80 | 96 | 128 | 160 | |
| Nominal voltage | 400Vac, three phase/5wire (348~424, settable) | |||||||||||||
| Voltage regulation | +/-1% (static); +/-5% (dynamic) | |||||||||||||
| Nominal current (A) | 8.6 | 14 | 22 | 29 | 43 | 58 | 72 | 87 | 115 | 145 | 174 | 231 | 289 | |
| Frequency | 50/60Hz (settable) | |||||||||||||
| Frequency regulation | +/-0.05% (Battery mode); +/-2% (AC normal, settable from +/-1% to +/-5%) | |||||||||||||
| Crest ratio | 3:1 | |||||||||||||
| Wave form | True sine wave | |||||||||||||
| Overload | 110% for 5hrs, 125% for 10mintues, 150% for 1mintues | |||||||||||||
| Interface | Contact relay | Dry contact relay | ||||||||||||
| Communication | RS232 | |||||||||||||
| Remote control | Emergency power off, bypass | |||||||||||||
| Noise | 48DBA ,1m | 53~62dBA, 1m | ||||||||||||
| Degree of Protection | IP20 | |||||||||||||
| Ambient | Temperature: 0~40℃, <95% no condensation | |||||||||||||
| Efficiency | >95% | |||||||||||||
| Safety & EMC | Safety: EN62040-1; EMC: EN62040-2 ClassA 73/23-93/68-89/336 EEC EN62040-3 | |||||||||||||
| Physical | Weight(kg) (Excluding battery) | 175 | 198 | 230 | 255 | 320 | 335 | 470 | 480 | 560 | 750 | 860 | 1150 | 1180 |
| Size(H*W*D,mm) | 550*720*1200 | 800*740*1400 | 1070*740*1400 | 1420*740*1805 | ||||||||||
