3KVA/2700W online UPS
US$ 100 - 100
/ Piece
1000 Pieces(Min. Order)
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Powtech | |
| Model Number | HP series | Phase | Other | |
| Protection | Overvoltage | Weight | 90kG | |
| Output Voltage | 220Vac or 110Vac | Type | On-line | |
| Application | Telecommunications |
Product Description

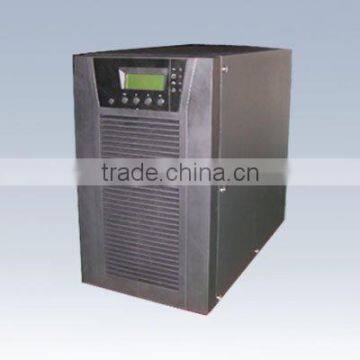

High frequency online UPS
Product Description
High frequency online UPS
Technical Specifications:
HP series
| Model | 1KVA(L) | 2KVA(L) | 3KVA(L) | ||||||||||||||||
| Capacity (KW) | 0.9KW | 1.8kW | 2.7KW | ||||||||||||||||
| Input | Voltage | 60~138Vac, 170 ~290Vac, 1phase | |||||||||||||||||
| Frequency | 40 to 70Hz | ||||||||||||||||||
| Power Factor | >=0.98 | ||||||||||||||||||
| Output | Voltage, Frequency | 100, 110, 120, 127Vac +/-2% or, 200, 208, 220, 230, 240Vac+/-2% 50Hz or 60Hz+/-0.2Hz ( Battery mode) | |||||||||||||||||
| Transient Response | +/-3%(100% load change) | ||||||||||||||||||
| Waveform | sine wave | ||||||||||||||||||
| Distortion | THD < 3% at 0~100 linear load | ||||||||||||||||||
| Overload capacity | 110 - 150% for 30sec, then transfer to bypass and auto resume; > 150% for 300ms | ||||||||||||||||||
| Crest Ratio | 3:1 | ||||||||||||||||||
| Battery | Capacity | 7Ah /12V*3pcs | 7Ah/12V*8pcs | 7Ah/12V*8pcs | |||||||||||||||
| Recharge time | 5 hrs to 90% of full capacity after full load discharge | ||||||||||||||||||
| Bypass | Automatic Transfer | Overload and UPS failure | |||||||||||||||||
| Transfer by setting | Voltage range:176V-253V (re-settable via LCD panel) | ||||||||||||||||||
| Transfer Time | 0 ms | ||||||||||||||||||
| Indicator | Three (3) LED and one (1) LCD | ||||||||||||||||||
| Interface | RS-232 | Power monitoring software (UPSilon 2000) | |||||||||||||||||
| SNMP slot (optional) | SNMP manager and Web browser | ||||||||||||||||||
| Surge Protection | RJ11 I/O port available for 10 base T network or Fax / Modem | ||||||||||||||||||
| Ambient | Temperature | 0 ~40deg ; 32 F~104 F | |||||||||||||||||
| Relative Humidity | 0-95% non-condensing | ||||||||||||||||||
| Acoustic Noise (at 1m) | < 45 dB | < 50dB | |||||||||||||||||
| Physical | Net weight | 14.5kg (7.5kg) | 33kg (13.8kg) | 34kg (14.8kg) | |||||||||||||||
| Dimension (L*W*H, mm) | 400*145*220 | 465*200*352 | 465*200*352 | ||||||||||||||||
