OPGW Optical Cable for Communication
- FOB
- T/T
You May Like
-
Fiber Optical Cable ( ADSS 300m Span )
-
24core Single Mode Optical Fiber Cable ADSS 100m Span / Power Optical Cable
-
ADSS All-Dielectric Kevlar Yarn Armor 24core Single Mode Fiber Optical Cable / ADSS Fiber Optic Cable
-
ADSS Fiber Optic Cable / All Dielectric Self-support Telecommunication Cable
-
OPGW Transmission Cable
-
OPGW Fiber Optical Cable
Product Details
Product Description
Specifications
OPGW cable1.Bigger cable diameter
2.short-circuit current capacity
3.Appropriate fiber excess length within SUS tube

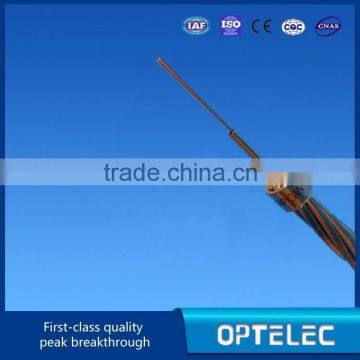

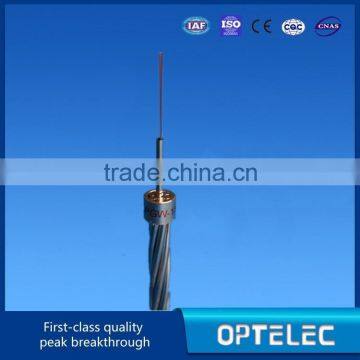

OPGW optical cable
product features:
1-Stranded design allow up to three steel tubes
2- Laser welded stainless steel tubes provide mechanical and thermal protection for optical fibers.
3-Light weight and small diameter
4- Good resistance to moisture and hydrogen ingress
5- Fiber counts up to 144fibers
OPGW standard compliance
IEEE -1138, IEC60794-4-1, IEC60793, ITU-T G.652, ITU-T G.655, IEC60794-1, DL/T 788-2001, YD/T 980-2002
OPGW technical parameter:
According fiber cores, weather condition, RTS, short circuit current capacity, DC resistance, line voltage and etc.
OPGW Mechical characteristics:
Over all diameter (mm): 12~18mm
Fiber count: 24~144fibers
Fiber optical tube: Laser welded stainless steel
Armore type: Aluminum-clad wire or aluminum-alloy wire
Unit weight (kg/km): 350~900kg/km
Short circuit current capacity:up to 200kA2.t
Rated tensile strength (RTS): up to 130kN
if you are interested in optical cable we supply,you can feel free to get in tuoch with us asap.we are your best choice.
