OPGW Cable the Hottest

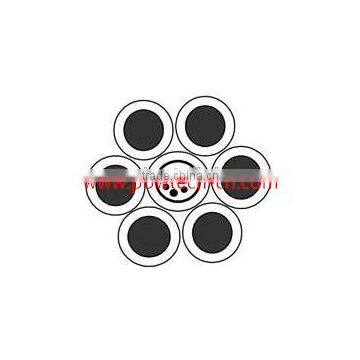

OPGW fiber optical cable

1-Fiber core: 12~96fibers

2-Low attenuation coefficient and chromatic dispersion, insure cable's optics transmission charateristics

3- Proper design, precise fiber excess length control and distinct stranding process render the cable excellent mechanical and environmental characteristics

4- Anti-electromagnetism ability

5- Use high intensity aramid yarn as anti-pulling component, strong, light and small cable diameter, suitable for different climatic situation and installation span.

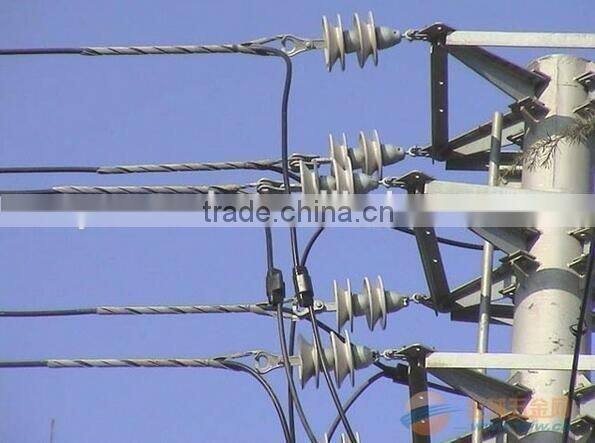

OPGW fiber optical cable applications:

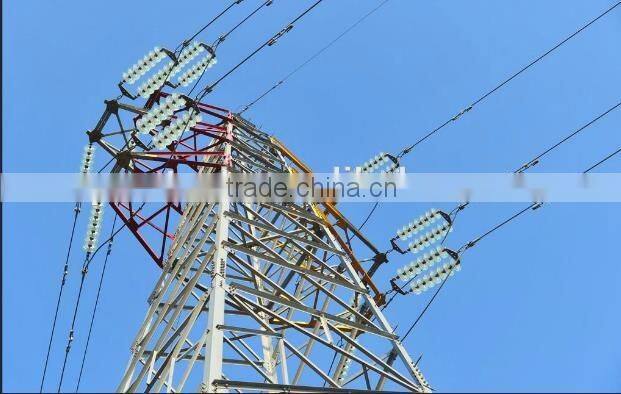

Environment with high electric field strength in the power transmission system and area where frequent thunder happens.

OPGW standard compliance

IEEE P1222, ITU-T G.652, ITU-T G.655, IEC60794-1, DL/T 788-2001, YD/T 980-2002

OPGW technical parameter:

According fiber cores, weather condition, installation span, line voltage and etc.

OPGW Mechical characteristics:

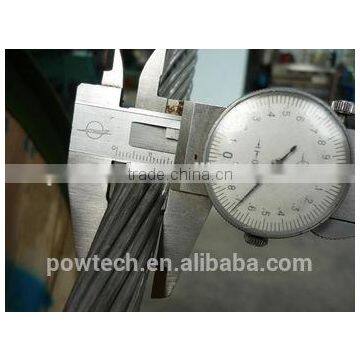

Cable diameter: 12.6mm

Weight (kg/km): 134kg/km

Rated tensile strength: 18kn

Max. allowable stress: 7.5kn

Everyday stress (EDS):4.6kn

Ultimate operation stress:11kn

Min. bending radius: static:

 dynamic: 20D

if you are interested in cable we supply ,please feel free to get in touch with us asap.

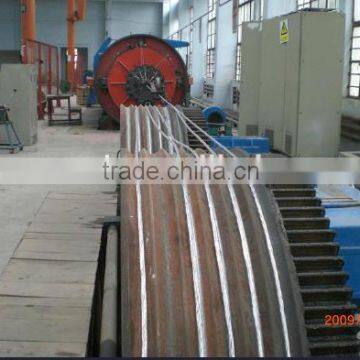

OPGW Cable production
