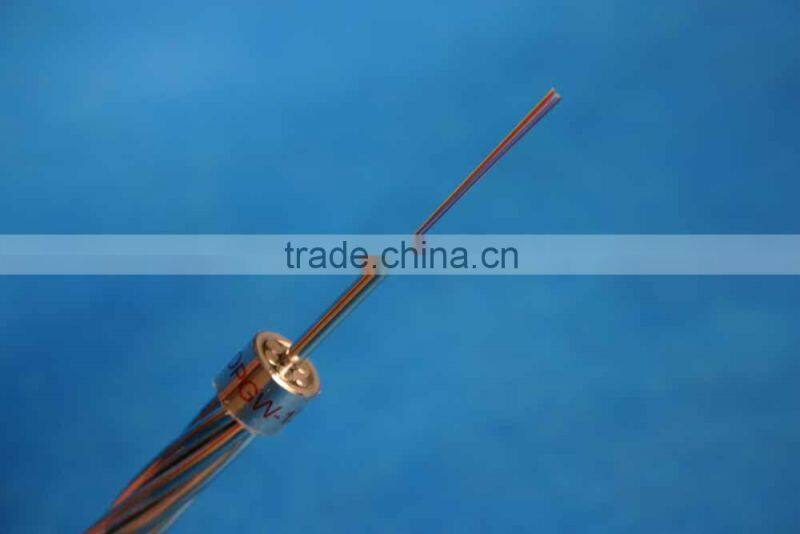

Fiber Optic Cable(OPGW 24 Fiber)
- Qingdao
- T/T L/C D/P D/A
You May Like
-
Overhead OPGW Cable
-
OPGW Cable for Tele- Communication
-
OPGW Optical Cable for Communication
-
Fiber Optical Cable ( ADSS 300m Span )
-
24core Single Mode Optical Fiber Cable ADSS 100m Span / Power Optical Cable
-
ADSS All-Dielectric Kevlar Yarn Armor 24core Single Mode Fiber Optical Cable / ADSS Fiber Optic Cable
Product Details
| Place of Origin | Shandong, China | Brand Name | Powtech | |
| Model Number | OPGW |
Product Description
OPGW features:
1-Fiber core: 24fibers
2-Low attenuation coefficient and chromatic dispersion, insure cable's optics transmission charateristics
3- Proper design, precise fiber excess length control and distinct stranding process render the cable excellent mechanical and environmental characteristics
4- Anti-electromagnetism ability
5- Use high intensity aramid yarn as anti-pulling component, strong, light and small cable diameter, suitable for different climatic situation and installation span.
OPGW application:
electric transmission line system
OPGW standard compliance
IEEE -1138, IEC60794-4-1, ITU-T G.652, ITU-T G.655, IEC60794-1, DL/T 788-2001, YD/T 980-2002
OPGW technical parameter:
According fiber cores, weather condition, RTS, short circuit current capacity, DC resistance, line voltage and etc.

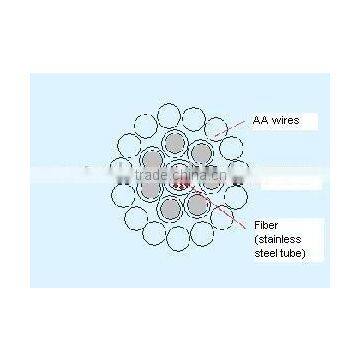

OPGW Mechical characteristics:
Over all diameter (mm): 12.5
Unit weight (kg/km): 385
Supporting cross section (mm2):88.2
Elasticity modulus (kN/m2): 94.1
Short circuit current capacity:51
Rated tensile strength (RTS):60.2
DC resistance (ohm/km): 0.473
