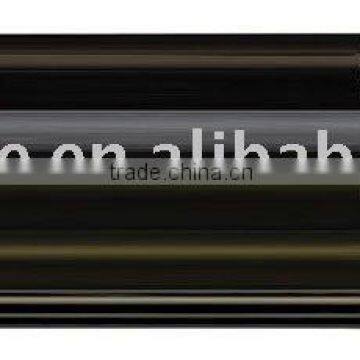

Underground SWA Armoured Power Cables

• SWA Armoured cables, armoured cable, steel wire armoured cable. Underground SWA Armoured Power Cables
• Insulation: PVC or XLPE (Cross Linked Polyethylene)
• Bedding: Extruded PVC
• Armour: Galvanised Steel Wire Armour,
• Sheath: PVC Black.
• Conductor: Stranded or Solid Plain Annealed Copper.
• Application: Designed for use in mains supply electricity. These cables are provided with mechanical protection are therefore suitable for external use and direct burial.
• Technical Data:        Voltage: 600/1000V,
                                   Temperature range: 0^oC to +90^oC
• Relevant Standards: Conductor:              To BS6360, Armour:   To BS442
                                   Sheath:                   To BS6746 Type G.
• Core Identification:   2 Cores:  Blue, Brown
                                   3 Cores:  Brown, Black, Grey
                                   4 Cores:  Blue, Brown, Black, Grey
                                   5 Cores (6mm and below) : White Insulation With Black Numbers
                                   5 Cores (10mm and above) : Brown, Blue, Black, Grey and G/Y

 SWA Armoured cables, armoured cable, steel wire armoured cable

Single Core Plain annealed copper conductor, XLPE insulated / PVC extruded bedded / Aluminium wire armoured / PVC sheathed.  600 / 1000 volts grade to BS5467.

XLPE / PVC / SWA / PVC (copper) BS5467

Plain annealed copper conductor, XLPE insulated / PVC extruded bedded / Steel Wire armoured / PVC sheathed.  600 / 1000 volts grade to BS5467.
