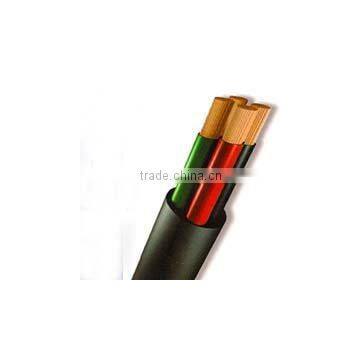

Power cables with plastic insulation PVC cable

FOB Price

US$ 0.11 - 99.98 / Meter

1000 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Specification

1. Superior quality and competitive price
2. Fast delivery
3. ISO Quanlity Certification

Data:

Brand	Number of cores	Nominal section of main cores, mm²		External cable diameter, mm	Weight of cable, kg/km
		Nominal voltage, kV
		0,66	1
VVG, PVG	1, 2, 3 è 4	1,5-50	1,5-240	5,4-50,6	42,0-9942
AVVG, APVG	1, 2, 3 è 4	2,5-50	2,5-240	5,8-50,6	38,8-3934
AVBbShv, VBbShv, PBbShv, APBbShv	2, 3 è 4	4-50	6-240	12,4-56,0	403-10983
AVVG, APVG	5	2,5-50	2,5-35	12,2-28,2	147-873
VVG, PVG	5	1,5-25	1,5-25	11,1-27,6	166-1559

Application

For transmission and distribution of electric energy in stationary installations with AC of 0,66-1 kV and 50 Hz of requency.

characteristics:

1.Nominal cable voltage is 0,66 and 1 kV, frequency of 50 Hz.

2.Electrical resistance of insulation of 1 km cable with nominal core section: 1,5 mm² - 12 MΩ, 2,5 4 mm² - 10 MΩ, 6 mm² - 9 MΩ, 10 240 mm² - 7 MΩ.

3.Resistance to influence of ambient air temperature:

At high temperature of ambient air +50ºC

At low temperature of ambient air -50ºC

Relative humidity up to 98% at the temperature of 35ºC.

Package & Delivery

wooden drums seaworthy or according to your option

shipment within 15 working days
