Home > Products > PVC cable > plastic insulation power cable type VBBShV (single conductor) voltage upto 1 1 KV

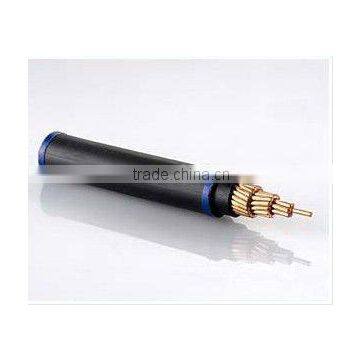

plastic insulation power cable type VBBShV (single conductor) voltage upto 1 1 KV
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | taifa | |
| Model Number | VBBShV cable | Insulation Material | PVC | |
| Type | Low Voltage | Application | Other, Industrial, industry | |
| Conductor Material | Copper | Jacket | PVC |
Product Description
Specification
CABLE STRUCTURE
Cable lead - copper, single-wire.
Insulation - PVC or PE
Sheathing for cables of marks VVG, PVG PVC
Nominal conductor cross-section - from 1,5 to 10 mm2
Cables manufacturing with single, two or three conductors. Four conductors cables manufacturing with the conductors of same cross-section or with one conductor of smaller cross-section.
Note
1. Limits of environment working temperature from -50° to +50°.
2. Relative humidity up to 98% at temperature 35°.
3. Rated alternating voltage 1 kV at frequency 50 Hz.
4. Testing voltage - alternating current, 50 Hz, 3500 V within 10 min.
5. Insulation resistance not less then 0,005 per kilometer.
6. Min. bending radius - approx 15 cable dia.
Package & Delivery
wooden drums seaworthy or according to your requirements
delivery within 15 working days
