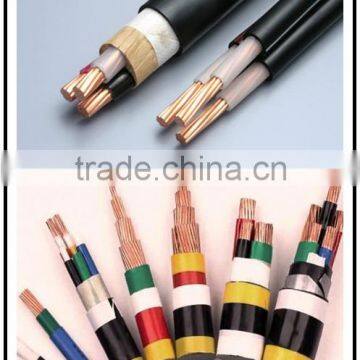

Best selling UL standard XLPE stranded copper cable eletric power cable XMVK cable

XMVK unarmoured cable struction

Conductor section:2.5 mm² Rated voltage:450/750v

Line core number and conductor nominal section

Norminal thinkness of insulation(mm)

Norminal thinkness of sheath (mm)

Overall Diameter (mm)

At 20 DC Resistance of conductor (Ω/km)

2x2.5

0.6

1.4

9.2±0.2

7.41

3x2.5

0.6

1.4

9.6±0.2

7.41

4x2.5

0.6

1.4

10.3±0.2

7.41

5x2.5

0.6

1.4

11.5±0.3

7.41

Application

YMvKmb is Copper conductor, XLPE insulation, PVC sheath, NEN type power and control cable.

Designed for energy supply in cable ducts, power stations, and industry and distribution boards and in subscriber networks. May also be used in brickwork and in concrete with the exception of cabling in shaken, vibrated or compressed concrete. Can be installed in open area, underground, in water and indoors where mechanical damages are not to be expected.

Standard

IEC 60502, K42C

Construction

Conductor :

Solid or Stranded bare copper (IEC 60228 Class 1 or Class 2)

Insulation :

XLPE (Code color HD 308)

Covering :

Taped or Extruded

Sheath :

PVC (Grey)

Technical Data

Working Voltage :

Uo/U = 0.6/1KV

Test Voltage :

4000V/5min No breakdown

Min. Bending Radius :

Single core 15×Ø , Multi core 12×Ø

Working Temperature :

Flexing -5°C to +90°C, Fixed -40°C to +90°C

Flame Retardant :

IEC 60332

Cable Marking :

YMvKmb CABLE ***mm² 0.6/1KV SHSU

Application

YMvKmb is bare Copper conductor, XLPE insulation, PVC sheath, NEN type power and control cable.

Designed for energy supply in cable ducts, power stations, and industry and distribution boards and in subscriber networks. May also be used in brickwork and in concrete with the exception of cabling in shaken, vibrated or compressed concrete. Can be installed in open area, underground, in water and indoors where mechanical damages are not to be expected.

Standard

IEC 60502, K42C

Construction

Conductor :

Solid or Stranded bare copper (IEC 60228 Class 1 or Class 2)

Insulation :

XLPE (Code color HD 308)

Covering :

Taped or Extruded

Sheath :

PVC (Grey)

Technical Data

Working Voltage :

Uo/U = 0.6/1KV

Test Voltage :

4000V/5min No breakdown

Min. Bending Radius :

Single core 15×Ø , Multi core 12×Ø

Working Temperature :

Flexing -5°C to +90°C, Fixed -40°C to +90°C

Flame Retardant :

IEC 60332

Cable Marking :

YMvKmb CABLE ***mm² 0.6/1KV SHSU
