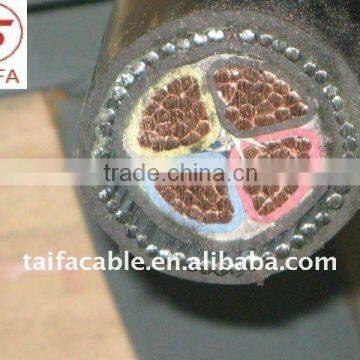

Best price XLPE insulated SWA steel wire armored PVC sheathed power cable

   Best price XLPE insulated SWA steel wire armored PVC sheathed power cable

Used for power transmission and distribution line with voltage rated at 35kV and below.

Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.

Standards

International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6/1kV, 1.8/3kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV

Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.

Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables

15 x cable O.D for single-core armoured cables

15 x cable O.D for multi-core non-armoured cables

12 x cable O.D for multi-core armoured cables

Certificates

CE, RoHS, CCC, KEMA and more others at request

1. U0/U: 600/1000V

2. Standard applied: BS6346

3. Max working temperature: 70°C

4. Conductor

Class 2 stranded plain copper conductors Class 1 solid plain copper conductor

5. Insulation: XLPE

6. Armour: Galvanized steel wire

7. Cores: One to Five cores

8. Cross section area: 1.5mm2-630mm2

9. Bedding: PVC bedding

10. Sheath: PVC Sheath

11. Color: Black,or as per request

12. Flame retardant or fire resistance or Low smoking and Halogen free or other property can be available

13. Packed in drum or as per request

14. Certification: Third party test reports available

15. OEM can be available

16. Henan Taifa is a reliable, large factory, has a good selling around world, enjoying a good reputation based on top quality and most competitive price and best service

1. xlpe underground electrical power cable application:

Fire-resistant XLPE Insulation PVC sheah power cable is used indoor or outdoor, in tunnel, cable furrow or pipe.

1, Cross-section area can be up to 800sq.mm(copper or aluminum conductor)

2, Conductor long-time operating temperature is 90 degrees.

3, In short circuit conductor highest temperature should be not more than 250 degree

2. xlpe underground electrical power cable Description:

Standard: IEC 60502

Conductor: Cu/ Aluminum

Conductor Screen: Semi-conductive

Insulation: XLPE(Cross-linked Polyethylene)

Insulation Screen: Semi-conductive

Armour: Steel Wire/ Steel Tape Armoured

Sheath: PVC or LSZH

Sheath color: Black

Bending Radius:

Single core: 20D±0.05, multi-core: 15D ±0.05

3. xlpe underground electrical power cable parameter sheet:
