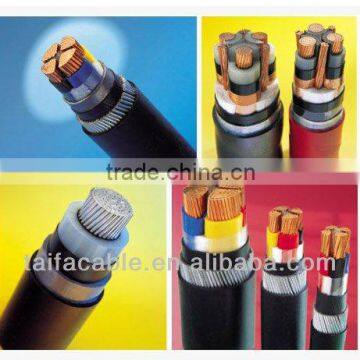

Copper conductor and PVC insulated and jacket SWA Control cable
- Qingdao
- T/T PayPal
You May Like
-
450/750V Copper Conductor PVC Insulated and sheathed Flexible Control cable
-
PVC or XLPE Screened Control cable by IEC 60227
-
PVC Insulated and Sheathed Control Cable
-
450/750V IEC standard PVC insulated and sheathed woven shielded multicore flexible control cable
-
Steel Tape or Steel Wire Armored Control Cable
-
control cable
Product Details
| Place of Origin | Henan, China | Brand Name | Taifa | |
| Model Number | KVV32 | Insulation Material | PVC | |
| Type | Other, Stranded | Application | Construction | |
| Conductor Material | Copper | Jacket | PVC |
Product Description
Specifications
SWA Control cableIEC,BS,ASTM standard
high quality,competitive price,fast delivery
factury direct sell,best service
ISO
Copper conductor and PVC insulated and jacket SWA Control cable
1 Product Standard
This product is manufactured according to GB/T9330, IEC60227 and IEC60502 etc.
2 Application
The product is suitable for connection in control, signal, protection circuit and measuring system with rated power-frequency voltage 450/750V or 0.6/1KV.
3 Operating characteristics
1). Rated power-frequency voltage Uo/U: 450/750V or 0.6/1KV.2). Max. permissible continuous operating temperature of conductor: 70°C3). Max. short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 160°C
4). The ambient temperature under installation should not below 0°C. Otherwise, the cable shall be preheated.5). The recommended bending radius of a cable should be:
Non-armored cable, not less than 6 times of the cable diameter.
Armored cable or copper tape screened cable, not less than 12 times of the cable diameter.
Shielded flexible cabel, not less than 6 times of the cable diameter.
4 Type and Name
Type | Designation |
KVV | Copper conductor,PVC insulated,PVC sheathed control cable |
KVVP | Copper conductor,PVC insulated,PVC sheathed,Braided shield control cable |
KVVP2 | Copper conductor,PVC insulated,PVC sheathed,copper tape shield control cable |
KVV22 | Copper conductor,PVC insulated, PVC sheathed,steel tape armored control cable |
KVV32 | Copper conductor,PVC insulated, PVC sheathed,steel wire armored control cable |
KVVR | Copper conductor,PVC insulated,PVC sheathed flexible control cable |
KVVRP | Copper conductor,PVC insulated,PVC sheathed,Braided shield flexible control cable |
KVVP-22 | Copper conductor,PVC insulated,PVC sheathed,Braided shield, steel tape armored control cable |
KVVP2-22 | Copper conductor,PVC insulated,PVC sheathed,copper tape shield,steel tape armored control cable |
