0.6/1kV copper XLPE Insulated BS5467 STA XLPE cable
- qingdao port
- T/T L/C D/P D/A
You May Like
-
supply best quality and lower price of NSHTOU cable
-
5454 Aluminum Sheet 5754 Aluminum sheet O-H112 for noise protection screen, railway acoustic screen
-
SWA/SWP/XLPE POWER CABLE
-
Hot selling PVC Insulated Fire Resistant Screened Control Cable KVV control cable
-
Superior quality KVV power cable 1.5mm 2.5mm 4mm PVC insulation and sheath control cable
-
KVVR PVC Insulated PVC sheath Control Cable
Product Details
| Place of Origin | Henan, China | Brand Name | Taifa | |
| Model Number | BS5467 STA XLPE cable | Insulation Material | Other, PVC or XLPE | |
| Type | Low Voltage | Application | Industrial | |
| Conductor Material | Copper | Jacket | PVC |
Product Description

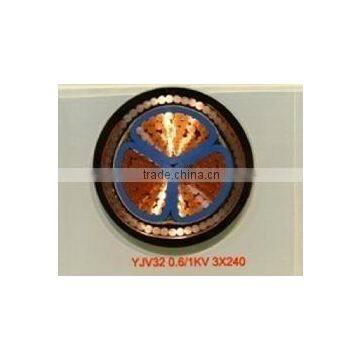

0.6/1kV copper XLPE Insulated BS5467 STA XLPE cable
BS5467 STA XLPE cable
Standards: BS5467,IEC60502,SANS 1507
All size 1.5sqmm to 240sqmm
BS5467 SWA XLPE cable
Application
SWA Cable - power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.
Standards
BS5467, IEC 60502
Conductor
Class 2 plain stranded copper
conductor to BS EN 60228:2005
(previously BS6360)
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding
PVC (Polyvinyl Chloride)
Armouring
Single Core: AWA
(Aluminium Wire Armour)
Multi-Core: SWA (Steel Wire Armour)
Sheath
PVC (Polyvinyl Chloride)
Sheath Colour
Black
Voltage Rating
600/1000V
Temperature Rating
0°C to +90°C
Minimum Bending Radius
1.5mm2 - 16mm2:
6 x overall diameter
25mm2 and above:
8 x overall diameter
Core Identification
1 Core: Brown
2 Cores: Brown, Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
Alternative core identification:
White cores with Black numbers
