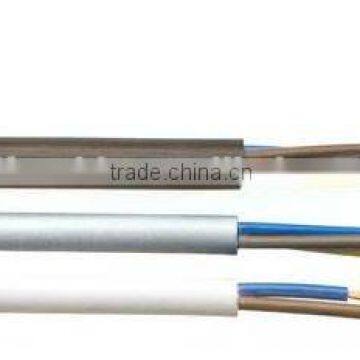

Multi-core lszh flexible cable
USD $0.11 - $39.98
/ Meter
1000 Meters(Min.Order)
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | TAIFA | |
| Model Number | flexible control cable | Insulation Material | XLPE | |
| Type | Low Voltage | Application | Other, building/indoor/outdoor | |
| Conductor Material | Copper | Jacket | Other, LSZH |
Product Description
- Superb quality Multi-core factory supply lszh flexible cable
- Application:
- For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use in conditions of light mechanical stress. Can be used outdoors when protected, and in dry or moist conditions indoors.
- Standards:
- Generally to BS6500, VDE0250, IEC 60332-3, IEC 60754-1
- Conductor:
- Class 5 flexible plain copper conductors to BS EN 60228:2005 (previously BS6360),
DIN VDE 0295:1995-06 or IEC 60228 - Insulation:
- XLPE (Cross-Linked Polyethylene)
- Sheath:
- LSZH (Low Smoke Zero Halogen)
- Sheath Colour:
- grey black white and so on
- Voltage Rating:
- 300/500V
- Temperature Rating:
Fixed: -35°C to +85°C
Flexing: -5°C to +85°C- Minimum Bending Radius:
- 10 x overall diameter
- Core Identification:
- Black with White numbers. (3 cores and above to include Green/Yellow). Coloured cores available.
- YY LSZH Control Flexible Cable to BS6500
No. of Cores x Nominal Cross Sectional Area# x mm² Nominal Overall Diametermm 2 x 0.50 5.20 2 x 0.75 5.70 2 x 1.00 5.90 2 x 1.50 7.10 2 x 2.50 8.30 3 x 0.50 5.50 3 x 0.75 6.04 3 x 1.00 6.26 3 x 1.50 7.54 3 x 2.50 9.04 3 x 4.00 10.40 3 x 6.00 11.90 3 x 10.00 14.70 3 x 16.00 17.70 4 x 0.50 5.98 4 x 0.75 6.58 4 x 1.00 7.02 4 x 1.50 8.23 4 x 2.50 9.87 4 x 4.00 11.40 4 x 6.00 13.30 4 x 10.00 16.60 4 x 16.00 19.70 5 x 0.50 6.53 5 x 0.75 7.41 5 x 1.00 7.68 5 x 1.50 9.23 5 x 2.50 11.05 5 x 4.00 12.90 5 x 6.00 14.80 5 x 10.00 18.20 5 x 16.00 21.70 5 x 25.00 26.70 7 x 0.50 7.30 7 x 0.75 8.05 7 x 1.00 8.55 7 x 1.50 10.05 7 x 2.50 12.25 12 x 0.50 9.70 12 x 0.75 10.94 12 x 1.00 11.36 12 x 1.50 13.00
