Home > Products > New Products > HY300t Type Paver Block Making Machine

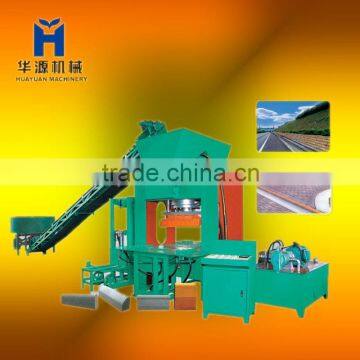

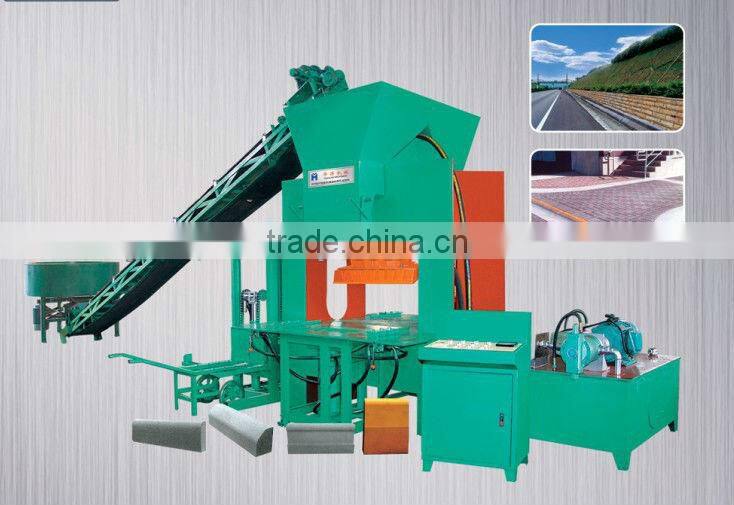

HY300t Type Paver Block Making Machine
US$ 20,000 - 24,000
/ Set
1 Set(Min. Order)
- xiamen
- T/T
You May Like
-
PL 800 Batcher Machine for Concrete
-
Low Cost and Full Automatic Fly Ash Block Making Machine
-
Compressed Earth Blocks Making Machine QT6-15
-
Fully Automatic Concrete Block Making Machine Price in India QT6-15 Concrete Blocks Making Machine
-
2013 Latest Technology Fly Ash Brick Making Machine QT8-15 Fly Ash Brick Making Machine in India Price
-
2015 Full Automatic Interlock Brick Machine Price QT6-15 Hydraform Brick Making Machine in South Africa
Product Details
| Condition | New | Type | Paving Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | No | |
| Capacity | 800pcs | Place of Origin | Fujian, China | |
| Brand Name | HYM | Model Number | HY300T | |
| Voltage | 380V | Power | 16.5KW | |
| Dimension(L*W*H) | 8000X2900X2600MM | Certification | ISO90001.2000 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
HY300t type paver block making machinepaver block making machine
earth brick making machine
glass block making machine
HY300t type paving block making machine
paver block making machine
earth brick making machine
glass block making machine
HY300t type paver block making machine
Main technical Specifications:
HY3000-type semi-automatic hydraulic curbstone molding machine,
HY3000type paver stone semi-automatic hydraulic making machine, the main frame structure of plate, solid, durable, high pressure, and adopts hydraulic cylinder push and pull mold, mold positioning accurately, whole machine high degree of automation, stable performance, density of pressed products, angular, high compressive strength, bending strength, suitable for all kinds of special shape, large size, high intensity, lu yanshi and fabrication, etc.
The machine makes a variety of large size curbstones with lengths up to 1000mm. mold-making for different thickness and dimensions can be customized.
Main technical parameters
Max pressure | 3000KN | Cylinder diameter | 360mm |
Pump pressure | 31.5MPa | Pump displacement | 63ml/r |
Motor power | 16.5KW/380V |
Machine Size
| 8000x2900x2600(mm) |
Production/8hours | 600~800pcs(Paving stone) |
|
|
Contact Us
- Fujian Nanan Huayuan Machinery Manufactory
- Contact namejenfy fu Chat Now
- Phone86-0595-26555699
- Addressfengzhou town taoyuan industrial zone 106 NO., Quanzhou, Fujian
