TOP Quality Fully Automatic Concrete Block Making Machine With Lower Price Concrete Block Machine (QT6-15)
- Xiamen China
- T/T
You May Like
-
Best Quality Concrete Block Machine of QT6-15 Automatic Block Making Machine
-
Mozambique QT4-15 Cheap Concrete Block Making Machine
-
Made in China Brick Machine QT4-15 Complete Automatic Brick Machine
-
Professional Brick Manufacturing Machine QT10-15 Automatic Brick Making Machine
-
QT4-15 Cement Block Making Machine With Easy Operation and High Capacity
-
Made in China Block Machine for Sale,concrete Block Making Machine Price in India,hollow Block Making Machine
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Cement | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 20sets block making machine | Place of Origin | Fujian, China | |
| Brand Name | HYM | Model Number | QT6-15 block making machine | |
| Voltage | 380V | Power | 37.4kw | |
| Dimension(L*W*H) | 9450*3300*2700mm | Certification | ISO9001:2000 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

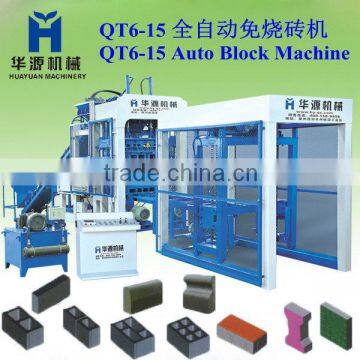

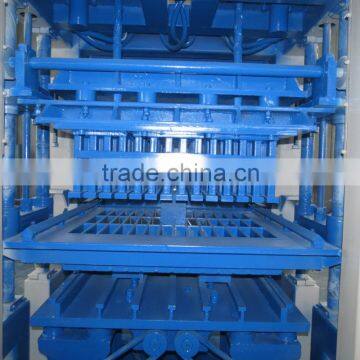

Block Making Machine for QT6-15
1.power: 37.4kw
2.Cycle time:15-20s
ure:31.5Mpa
4.pallet size:850*680*20mm
TOP Quality fully automatic concrete block making machine with Lower price concrete block machine (QT6-15)
1,Main component of QT6-15 automatic concrete block making machine:
1. Recycle material feeding system: Economize in material for different or same density products.

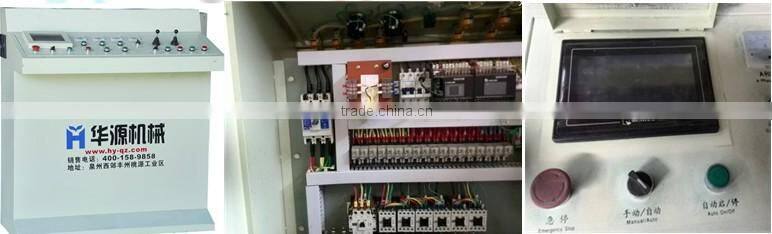

2. PLC (computer automatic control): Hundreds program and process are ready to install, suitable for complex dynamic environment, and easy to handle.
3. Multi-source vibration system: For ensure the accuracy, the vibration frequency is adjustable.
4. Automatic diagnosis system: Unique system, Real-time monitoring to find out the fault, achieved remote- control by using telephone line.

2.Main technical parameters of QT6-15 automatic concrete block making machine :
Cycle Time | 15-20 Sec | Vibration Type | hydraulic vibration |
Total Power | 37.4kw | Vibration | 68(KN) |
Vibration Frequency | 3800-4500(times/sub) | Gross Weight | 7500(kg) |
Pallet Size | 850×680×20(mm) | Machine Size | 9450×3300×2700mm |
Rated Pressure | 31.5(mpa) | Stacking Machine Power | 2.25kw |
3.QT6-15 block making machine Capacity :
Brick | Sizes | Output/ mould | Output/Shift(8hours) |
|
Blocks | 390x190x190mm | 6 | 8,640-11520 |
|
Porous bricks | 240x115x90mm | 15 | 21,600-28,800 | |
Interlocking block | 200x100x60mm | 21 | 25,200-30,240 | |
Solid bricks | 240x115x53mm | 30 | 47,200-63,600 |
About Brick shaped mold can be produced according to user needs.by QT6-15 block making machine .
4. Famous block making machine from Huayuan Machinery Manufactory:

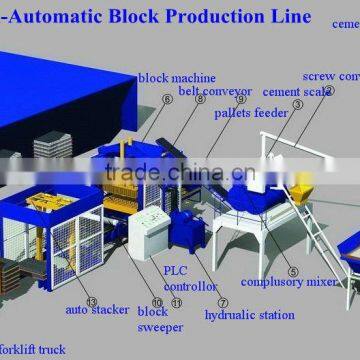

2)Simple automatic concrete blok making machine production line:

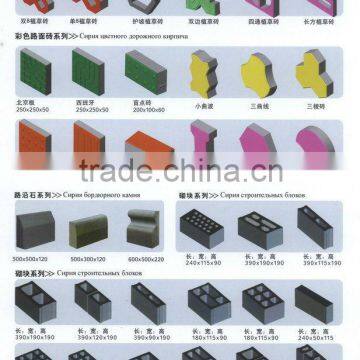

5,Sample blocks and brick produced by block making machine:

Our block making machine Installation Service:
Our factory could send one or two of our engineers to buyer’s place to direct the installation and give the operation training.
Block making machine After-sale service:
With1 years warranty,within one year time from the date of purchase,if malfunctions arise due to manufaturing quality factor,factory is responsible for free maintenance
Our factory established in 1988,is a highly professional and experienced manufacturer for cement brick making machine,concrete block making machine, block making machine,paver making machine,curbstone making machine,batching plant,concrete mixer and so on,combining development,design, manufacture,sales and services.

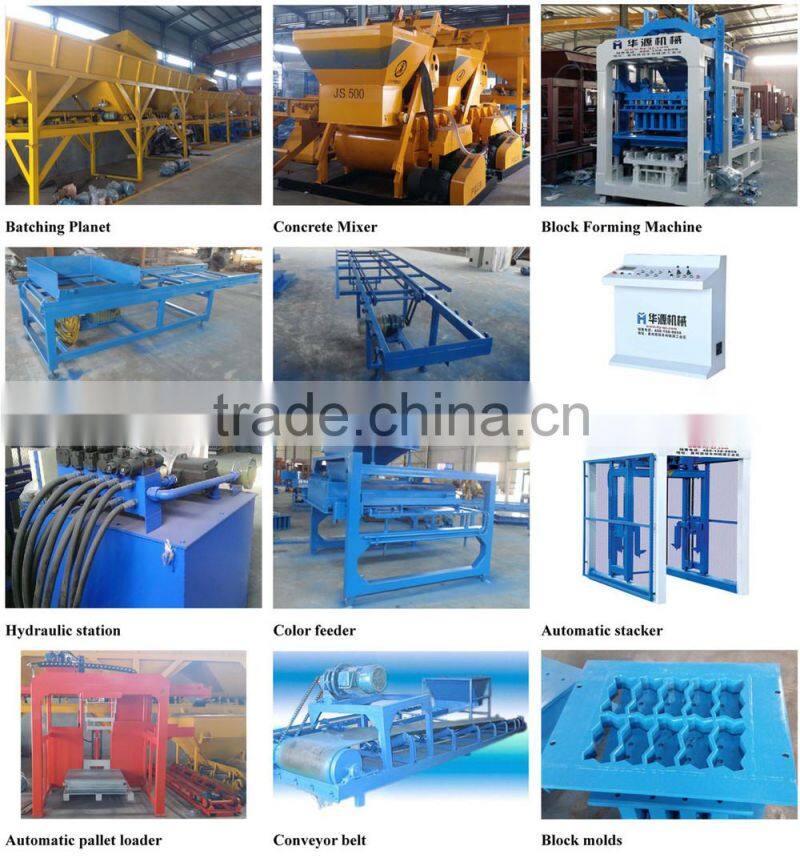

6,Block making machine Matching Equipments:
7,Our concrete block making machine Customers From All Over The World:
8,Main Informations of Investing concrete block making machine:
Function: |
Automatic block making machine can make Standard bricks, porous bricks, hollow bricks, paving bricks, curb stones, grass land bricks and so on. can be produced with various molds. |
Process: |
Our concrete block making machine is manpower saving for its operating rod control, automatic pallet conveyance, automatic leading-out and hydraulic molding. |
Land area for QT6-15 block making machine: |
* Stacking room: 5,000-6,000m2 * Raw material room: 400m2 * Operating workshop: 200m2 * Office: 50m2 |
Water and power: |
* General power: 95Kw * Average power consumption: 55Kw/h * Average water consumption: 13T per day |
Environmental protection: |
It confirms to the environmental protection standard with no waste water, slag and waste gas in the production process. |
Personnel quotate: |
4-6 people |
| Brick Raw Material: |
Concrete, Cement, Sand, Fly Ash, Construction waste, stone powder,etc |
8,The shipping of concrete block making machine price in india
Welcome you inquiry!
