Aluminum coil coating line with accumulator

FOB Price

USD $450,000 - $500,000 / Set

1 Set(Min. Order)

Port Ningbo
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Coating Production Line
Substrate	Aluminum	Coating	Coil Coating
Place of Origin	Zhejiang, China	Brand Name	Geartech
Model Number	JET-HT-1300	Voltage	380V or 420V
Power(W)	180KW	Dimension(LWH)	651212m
Weight	70tons	Certification	CE
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1. Coating thickness is stable by using rolling coater
2. The paint can be PVDF, PE and AC
3. With multi-module PLC control

Product Name: JETDC-1300CL/JETDC-1600CL Aluminum Coil Coating Line

Application of product and characteristics:

Color coated aluminum coil, which was finished through degreasing, cleaning, passivation, coating and baking, are mainly used in fields of construction decoration such as ACP and ceiling etc.

1. Coating thickness is stable by using rolling coater
2. The paint can be PVDF, PE and AC
3. With multi-module PLC control system
4. Heating and drying system and drying system with natural gas or diesel oil

5. The coating line can be without stopping when changing coils, save waste.

Multifuction:

1) Can make cleaning and coating both separately and continuously;

2) Can make rewinding separately

3) Can be without stopping when changing coils

Main Parameters:

Raw material	1100 3003 5005 H18 H24
Paint	PVDF, PE, AC
Size	Thickness: 0.06-1.5mm; Width: 800-1600mm
Weight of coil	3MT(Max)
Production speed	10-30m/min
Speed of uncoil	35 m/min
Connecting time	≤5min
Noise	≤80db
Thickness of coating	10-50 um±2um

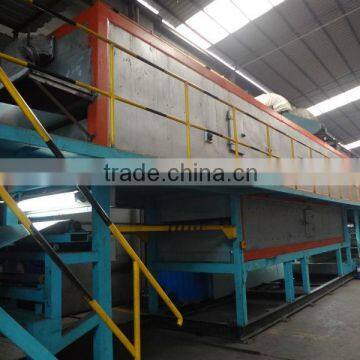

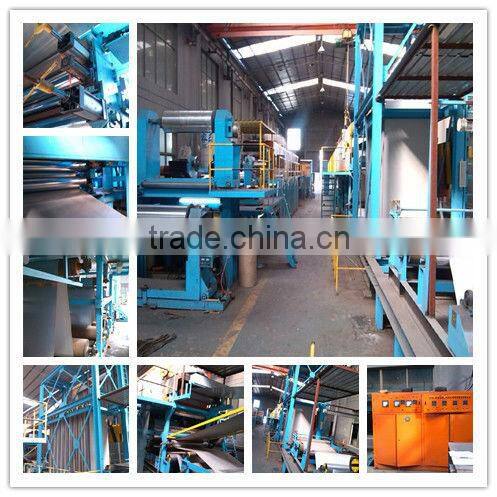

CAMPANY AND WORK SHOP PHOTO SHOW:
