steel coil coating painting machine production line

FOB Price

USD $800,000 - $2,000,000 / Set

1 Set(Min.Order)

Supply Ability 3 Set / Sets per Month
Port Ningbo/Shanghai port
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Coating Production Line
Substrate	Steel	Coating	Coil Coating
Place of Origin	Zhejiang, China	Brand Name	GEARTECH
Model Number	JETX-150/30-60	Voltage	380
Power(W)	350W	Dimension(LWH)	120X12X12m
Weight	800tons	Certification	CE
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1. Raw material can be galvanized steel plate, Zinc-Al plate and cold rolled plate etc.
2.The waste gas in oven can be recycle

Product Name: JETX-150/30-60 Steel Coil Coating Line

Steel coil coating line is roboticized equipment, which connect the advanced technique and abundant experience both in China and overseas. It has reduced much in investment, shortened the time of production, expedited and advanced the rate of profits. We use the technique of calefaction in many areas, sirocco and reuse the exhaust gas, in order to obtain environmental protection, power economization, low noise and waste. It can be used in every sort of paint and worked-liquor for any factories.

Application of product and characteristics:

The color coated steel plate, which is made of galvanized steel plate, finished through degreasing, passivation, coating and baking, can be used in fields of construction, electric appliance and decoration etc.

1. The waste gas in oven can be recycled by burning for heat
2. With multi-module PLC control system
3. Easy operation and high precision
4. Raw material can be galvanized steel plate, Zinc-Al plate and cold rolled plate etc.

Main Parameters:

Raw material	Galvanized steel plate ect.
Thickness	0.20-0.8mm
Width	600-1250mm (adjustable)
Inner dia. of coil	500mm-600mm
Outer dia. of coil	1500mm(Max)
Weight of coil	16MT(Max)
Production speed	60m/min(Max) for thickness 0.23-0.35mm
Production speed	45m/min(Max)for thickness 0.40-0.80mm
Maximal speed of entry and exit	80m/min(Max) for thickness 0.23-0.35mm
Maximal speed of entry and exit	60 m/min(Max)for thickness 0.40-0.80mm

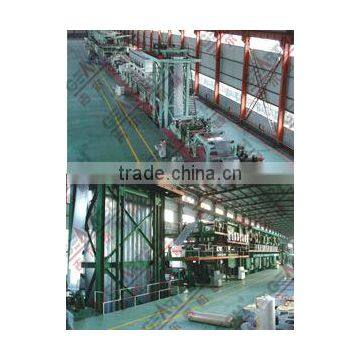

Steel Coil Coating Line show:

COMPANY AND WORK SHOP PHOTO SHOW:

ANY QUESTION ,PLEASE FREE CONTACT US.
