Home > Products > PP PS Sheet Extruder > SP-110/80 680 Double Layer PP/PS Plastic Sheet Extruder, extruder, sheet formin machine

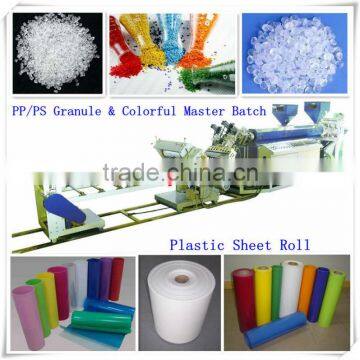

SP-110/80 680 Double Layer PP/PS Plastic Sheet Extruder, extruder, sheet formin machine
- 5 Set / Sets per Month
- Ningbo Port China
- T/T Credit Card
You May Like
-
Double Layer PP PS Plastic Sheet Extruder
-
Single Layer PP PS Sheet Extrusion Line
-
Plastic Sheet Extruding Machine, sheet production line
-
SPJM 110/80-680 Plastic Sheet Extruding Machine, extruder, sheet making line
-
SPJM 110/33-680 Single Layer PP PS Sheet Extrusion Line
-
SPJM 110/80-680 Double Layer PP PS Plastic Sheet Extruder price
Product Details
| Condition | New | Application | Sheet | |
| Plastic Processed | PP | Screw Design | Double-screw | |
| Automatic Grade | Automatic | Place of Origin | Zhejiang, China | |
| Brand Name | Sinoplast | Model Number | SP-110/80 680 | |
| Voltage | 380V/50HZ, 3P | Power(W) | 120KW | |
| Dimension(L*W*H) | 12.0X1.6X2.2m | Weight | 5000kg | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
I. QUANTITY: ONE SET
II. MAIN PARAMETERS:
Target material | PP/HIPS/GPPS |
Efficient width of sheet | 680mm(adjustable) |
Thickness of sheet | 0.25~2.0mm |
Tolerance of thickness | ±0.01mm |
Size of press roller | Φ350×780mm |
Size of forming roller | Φ350×780mm |
Size of fixed roller | Φ350×780mm |
Maximum output | 250-280kg/hr |
General power | ~110KW |
Measurement of the entire machine | ~12500×1850×2200mm |
III.Configuration and specification:
- No.1 Main Extruder: one
- #200 model Hard-tooth Gearbox: one.
The body of the gearbox is made from cast steel. The teeth deal with grinding and peeling eventually, which provides different characteristics of damping, antifriction, low-noise, long using period etc.
e.Barrel Heaters: The electric heater is made of cast aluminum with fan. Every electric heater has a specially designed tunnel for heat radiating.
f. Main motor power: 37KW, 6-gear, FC; rotary speed: 980r/min
g. AC motor with an inverter control
b. The screw
Material: high quality nitrided steel-38CrMoAlA
Nitration depth: 0.4-0.7mm, hardness≥940HV, fragility is 2 grades.
c. Barrels
Material: high quality nitrided steel-38CrMoAlA
Nitration depth: 0.4-0.7mm, hardness≥940HV, fragility is 2 grades.
d. Heating zones: 4 zones
e.Barrel Heaters: The electric heater is made of cast aluminum with fan. Every electric heater has a specially designed tunnel for heat radiating.
f. Main motor power: 37KW, 6-gear, FC; rotary speed: 980r/min
g. AC motor with an inverter control
h. Screw diameter: 80mm
i. L/D: 23:1
c. Roller length: 780mm
d. Roller surface treatment: plated chrome and half-mirror polishing
7. Trimming unit: one
Slitting knife: 2pcs
8. Haul off unit: one
a. Haul off steel roller: one
Diameter of the roller: 180mm
Length of the roller: 780mm
Surface treatment: plated chrome and half-mirror polishing
b. Haul off rubber roller: one
Diameter of the roller: 180mm
Length of the roller: 780mm
Surface treatment: coated erosion resistance, heat resistance and friction resistance rubber and polished.
c. Motor: One unit (6-gear, 2.2kw, FC)
d. AC motor with an inverter
9. Double Working-Position Winder (One set)
Shaft number: two
3" and 2" winding shaft,
Control by a high-grade torque motor
Macine packed by Wooden case or Plastic film
Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
machine adjustment and installation
we can send technicians go to customers' country for mahchine adjustment and installation
gaurantee time and after-sale
one year guarantee time, after one year , we have professional after-sales department providing best service if any problems.
More details about products, please contact with Ms. Maggie Lin
Skype: maggielam718
Trade Manager ID: sinoplast2013
Mobile/Whatsapp/Viber: 0086-13958816227
