Home > Products > Thermoforming Machine > SP510/580 Plastic Vacuum Thermoforming Machine

SP510/580 Plastic Vacuum Thermoforming Machine

FOB Price

USD $35,000 - $45,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Product Type	Other, boxes, plates, covers, trays,
Place of Origin	Zhejiang, China	Brand Name	Sinoplast
Model Number	SP-510/580	Voltage	380V/50HZ, 3P
Power(W)	10KW	Dimension(LWH)	2.75X1.41X2.15M
Weight	2500KG	Certification	CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

I. Main Features:

1) It is used for forming not only BOPS but also HIPS/PS/PVC/PET plastic sheet into different kinds of boxes, dishes, trays, bowls and lids.

2) It combines the material feeding, heating, shaping, and cutting into one process. The final products have been already cut one by one.

3) This machine adopts PLC program system, capability reliable, quality jarless, fault few. Servo motor drives the sheet transport system.

4) It has quickly production capacity, highly utilization ratios of plastic sheet, low air consumption and maintenance.

II. Main Technical Parameters:

We could make automatic stacker for BOPS automatic thermoforming machine.

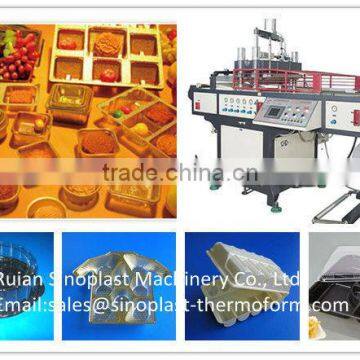

III. Some Thermoforming Samples:

IV. Some Thermoformin Moulds:

V. Auxiliary Machines For Thermoforming Machine:

More details of the machine, pls contact with Ms. Maggie Lin

Skype: maggielam718

Trade Manager ID: sinoplast2013

Mobile: 0086-13958816227
