Home > Products > New Products > Deep Water Well Logging System ,Water Borehole Logging (JGSB-1)
Deep Water Well Logging System ,Water Borehole Logging (JGSB-1)
Negotiable
/ Set
1 Set(Min. Order)
- chongqing
- T/T
You May Like
-
Professional Manufacturer Geophsics Borehole Instrument, Well Logging Equipment
-
Water Level Meter Digital Water Depth Level Instrument
-
Ultrasonic Acoustics Water Well Depth Meter
-
Digital Water Level Meter
-
2015Hot!!! Subsea Navigational Echo Sounders, Echo-Sounder
-
2015 Hot Sale Depth Echo Sounder with Transducer , bathymetry Survey
Product Details
Place of Origin | Chongqing, China | Brand Name | GOLD | |
Model Number | JGS-1B |
Product Description

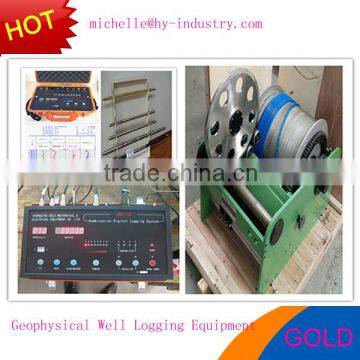

Portable Intelligent Water Well Logging System Water Borehole Logging (JGSB-1)
Detailed Product Description
1. Intelligent Water Well Logging System
2. Depth: 0-5000 meter
3. Automatic measure
4. Various parameter measurement
Portable Intelligent Water Well Logging System
Main Applications and Features
- Coal Field Digital Integrated Logging
- Hydrological Engineering Digital Integrated Logging
- Solid Metal Ore Digital Integrated Logging
- Other Minerals Digital Integrated Logging
- External Laptop (Desktop PC)
- For upward logging, also for downward logging
- Receive digital signal, analog signal
- 8 taps of power supply current, Optional
- Automatic sampling as per depth interval, sampling interval arbitrarily
- Indoor simulation logging, repeatability observation of instruments and probes
- Membrane panel, attractive and durable
Technical Specifications
- 12bit A/D Conversion, Program-Controlled Magnification K=0.5~128
- Counting Channel: f≤500KHz
- Digital Signal Transmission Frequency: 9600bit/s
- Power Supply Cycle: 400ms
- Current: 2mA~500 mA Optional
- Signal Input Range: ≤±10V
- Continuous Working Time: ≤24 hr
- Power Consumption: <200W
- Volume: 420×260×210mm,
- Weight: <7Kg
- Working Temperature Range: -10°C~ +50°C
- Working Power Supply: AC220V±10% 50Hz ±5%
Logging Working Software System
- 12bit A/D Conversion, Program-Controlled Magnification
- ?Operation Environment: Windows98/2000/XP
- Sampling Interval: Arbitrary (1~1000cm)
Setting (1cm, 2cm, ...1000cm) - Maximum depth of one-time acquisition: 3000m (0.1m sampling interval)
- Depth automatic alignment of multi-parameters
- Superposition of multi-parameters up to 10
- Curve movement, anomaly removal, smoothing, inverted order, , segmentation, calculation, etc.
- Interpretation of profile input, automatic generation of rock stratum name, thickness and baseplate depth
- Curve amplification and compression
- 5 types of curve depth ratio: 1:50, 1:100, 1:200, 1:500, 1:1000
- Continuous drawing production in color or black-and-white effects
- Output graph maximum width: 415mm, length: 2310mm
Contact Us
- Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
- Contact nameMichelle Li Chat Now
- Phone86-23-62794421
- AddressNo. 9-10, Jintai Mansion, 23 Nanping West Road
