Home > Products > New Products > 600m Single Frequency bathymetric survey Instrument Echo sounder, Echo Sounding machine
600m Single Frequency bathymetric survey Instrument Echo sounder, Echo Sounding machine
- CHONGQING
- T/T
You May Like
-
600m Reflectorless Laser and Electrical Total Station
-
Geological Exploration Equipment For Ground Water Exploration and Water detection
-
HD380 Dual Frequency Digital Echo Sounder
-
Detector Deep Underground Water DZD Deep Underground Water Detector
-
GNSS Rtk GPS Navigation Device for Land Survey, Construction
-
GD-C Small Size Mini Groundwater Detector
Product Details
| Type | Gps Tracker | Use | Automotive | |
| Screen Size | 7 inch | Place of Origin | Chongqing, China | |
| Brand Name | GOLD | Model Number | HD37 | |
| Warranty | 12 Months |
Product Description

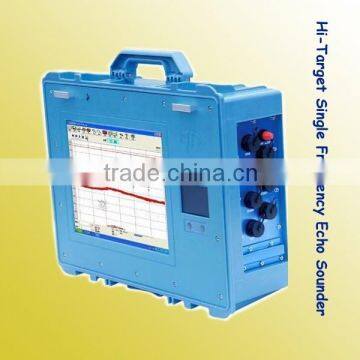

600m Single Frequency bathymetric survey Instrument Echo sounder, Echo Sounding machine
Digital Echo Sounder | HD370 Single Frequency | HD380 Dual Frequency |
Frequency | 200 KHZ | High: 100-750KHZ(Adjustable) Low: 10-50KHZ(Adjustable) |
Transmission Power | 500W (200KHZ transducer) | 500W (200KHZ High frequency band) 1000W (20KHZ Low frequency band) |
Bathymetric Range | 0.3m-600m | 0.3m-600m (High frequency) 0.3m-2000m (Low frequency) |
Depth Resolution | 0.1ft/0.01m | |
Accuracy | ±0.01m+0.1% of h( depth value) | |
Ping Rate | Up to 30Hz | |
Draft Range | 0.0m~15m | |
CPU | 1.6GHZ | |
Memory & Storage | 1G DDR2 & 4G storage | |
LCD Display | 12 inches, 1024X768 resolution, 1000cd/ m2 | |
I/O Interface | 2×RS-232 ports, 3×USB ports, 1×DC power port, 2×TX ports (for transducer) | |
Power Supply | DC 9~36V / AC 220V | |
Operation Temperature | -30°C~60°C, non-condensing | |
Dimension | 44mmL X 341mmW X 164mmH | |
Weight | 9 kg | |
With advanced frequency conversion technology, HD-370 and HD-380 reduce noise caused by transducer and enhanced echo intensity. In addition, both the HD-370 and the HD-380 support different frequency transducers to meet the demands of different hydrographic projects.
l The optimal TVG curve of HD-370 and HD-380 is designed according to the transmission properties of sonar in water which can greatly optimize sounding performance and solve the issue of shoal water sounding.
l Portable design, high-definition LCD screens and mass storage make field operations much more convenient.
l Preinstalled Hi-Sounder software reduces your software cost.
l With the low frequency sounding function, HD-380 can easily get mud thickness data.
