Home > Products > Inclinometer > Cheap Inclinometer of Fiber Optic Gyro for Sale

Cheap Inclinometer of Fiber Optic Gyro for Sale

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Shanghai
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	Gold
Model Number	JTC-1

Product Description

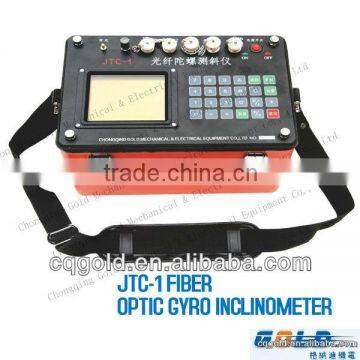

Inclinometer of Fiber Optic Gyro

1. Applications:

Adopting high precision fiber optic gyro as direction measurement sensor. Suitable used to measure inclination and direction

in the magneticmine area or inside iron casing.

2. Features:

1. All solid state structure, strong vibration control ability

2. Automatic search north

3. High accuracy measure, automatic store data

4. Probe suitable connect to integratd well logging system

5. System component

6. Main instrument, well logging probe, winch and cable

3. Technical Specifications:

1. Inclination Measuring Range 0 ~ 45°, Error ≤ 0.1°;

2. Azimuth Measuring Range 0~360°, Error ≤ 2 ° (1°≤Inclination≤45°);

3. Static Drift ≤ 4°, Non-Linearity of Drift ≤ 1°;

4. Measurement Mode: (frequency: 1 time/90 sec);

5. Gyro Service Life ≤ 3000 hours;

6. Probe Outline Dimension: φ38×2100mm;

7. Measured Well Depth ≤ 2000m;

8. Probe Pressure-Proof ≤ 200kg/cm2;

9. Instrument Working Power Supply: AC220V±10%, 50Hz ±5%;

10. Working Environment: Temperature: -10°~ 70°;Humidity: 90% (40°C)

11. Instrument Outline Dimension: 305×200×210mm;

12. Weight: 9 kg

Model	40FW	50F
Measure Range	Vertex angle;0°~50°Azimuth:0~360°	Vertex angle;0°~50°Azimuth:0~360
Measurement Accuracy	Vertex angle error:±0.2°Azimuth error: Vertex 1°~50°,< ±3° Direction drifting:<0.3°/h	Vertex angle error:±0.2°Azimuth error: Vertex 1°~50°, < ±3°
Measurement Depth	1500m (Temperature<60°C)	1500m (Temperature<60°C)
Measurement Mode	Point measurement	Point measurement
Probe Overall Dimension and Weight	Φ40mm*1600mm/10kg	Φ50mm*1680mm/9kg
