High-accuracy Fiber Optic Gyro Inclinometer

Adopting high precision fiber optic gyro as direction measurement sensor.
Suitable used to measure inclination and direction in the magneticmine area or inside iron casing.

All solid state structure, strong vibration control ability.
Automatic search north
High accuracy measure, automatic store data
Probe suitable connect to integrated well logging system.

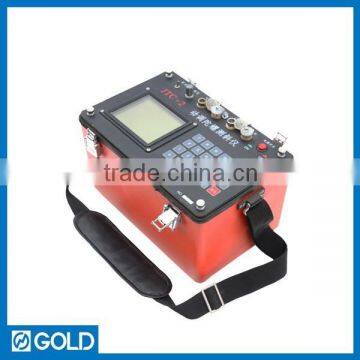

Main instrument, well logging probe, winch and cable.

Measuring range of inclination: 0~45°, error ≤ 0.1°

Measuring range of azimuth: 0~360°, error ≤ 4°(1° ≤ inclination ≤ 45°); Static drift ≤ 2°, drifting nonlinearity ≤ 1°

Measuring mode: Point measurement (frequency: 1 time/140 s)

Serial port R232 for data transmission;

Probe outer diameter of downhole instrument: 40mm

Measured depth: ≤ 2000m

Working power of the instrument: AC220V ± 10%, 50Hz ± 10%

Working temperature: -10℃~70℃

Humidity: 90%(40℃)

Main instrument overall dimension: 305 * 200 * 210mm

Weight: 3kg

Probe overall dimension: Φ40 * 2100mm

Weight: 4.2kg
