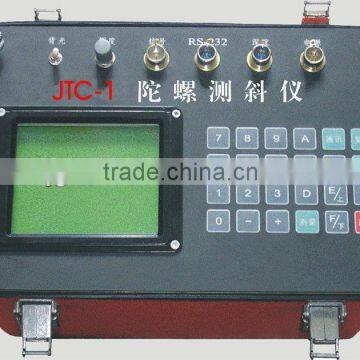

JTG-1 Magnetism Gyroscope Inclinometer
- 100 Set / Sets per Month
- Chongqing
You May Like
-
Digital Borehole Clinometer For Vertex and Azimuth Angle
-
2016 New!!! Digital Borehole Inclinometer, Drilling Inclinometer, Sensor Inclinometer and Low Cost Inclinometer for Sale
-
JTG-1 North Seeking Gyroscope Inclinometer
-
Fiber Optic Gyro Inclinometer geophysical instruments
-
Drilling Inclinometer GDY-2D Large Diameter Drilling Inclinometer
-
GDG-2 Inclinometer Calibration Table
Product Details
| Place of Origin | Chongqing, China | Brand Name | Gold | |
| Model Number | JTG-1 Magnetism Gyroscope Inclinometer |
Product Description
JTG-1 Fiber Optic Gyroscope Inclinometer
Application
It is mainly designed for measuring inclination (apex angle) and azimuth of borehole in magnetic mineral areas and iron casing tubes. It is mainly applied to measure inclination and azimuth in magnetic mine shafts and conductor holes as well as instruct construction and error correction of directional holes
Main Technical Specifications
1. Measuring range of inclination: 0~45°, error ≤ 0.2°;
2. Measuring range of azimuth: 0~360°, error ≤ 4° (1° ≤ inclination ≤ 45°);
3. Static drift ≤ 2°, drifting nonlinearity ≤ 1°;
4. Measuring mode: point measurement (frequency: 1 time / 140 s);
5. Service life of the gyro > 1800 h;
6. Serial port R232 for data transmission;
7. Probe outer diameter of downhole instrument: φ40mm;
8. Measured depth ≤ 2000m;
9. Resistance to pressure of the probe ≤ 200kg/cm2;
10. Working power of the instrument: AC220V±10%, 50Hz±10%;
11. Working environment:
Temperature: -10°~60°
Humidity: 90% (40ºC)
12. Probe overall dimension: φ40×2100mm
Weight: 3kg.
