Tabbing Wire Bus Wire Solar Panel Components Solar Cell Connect
- 5000 Kilogram / Kilograms per Month
- Shanghai or Ningbo
- T/T L/C Credit Card
You May Like
-
Schottky Diodes IN5819 1A 40V
-
China supplier hot For Sale Direct China 6*6 Thin Film Solar Cells
-
Top 10 Lowest Price 5W Mono Epoxy Solar Panel
-
2016 green energy with discount A grade solar cell mini Poly epoxy solar panel
-
Factory small Solar Module Poly 250w Epoxy Solar Panel For LED light Mobile Charging
-
Top 1 Poly Module Toys & Led light & Laptop Most Popular Epoxy Solar Panel
Product Details
Place of Origin | Zhejiang, China | Brand Name | SUNMALL | |
Model Number | SM-R1 | Type | Other, PV-ribbon |
Product Description
Specifications
Tabbing Wire Bus Wire Solar Panel Components Solar Cell Connect-Good solderability
-Good straightness
-Low yield strength
Tabbing Wire Bus Wire Solar Panel Components Solar Cell Connect
1. About PV Ribbon:
PV ribbon is composed of Copper and coating alloys, and divided into Tabbing Ribbon and Bus bar ribbon.

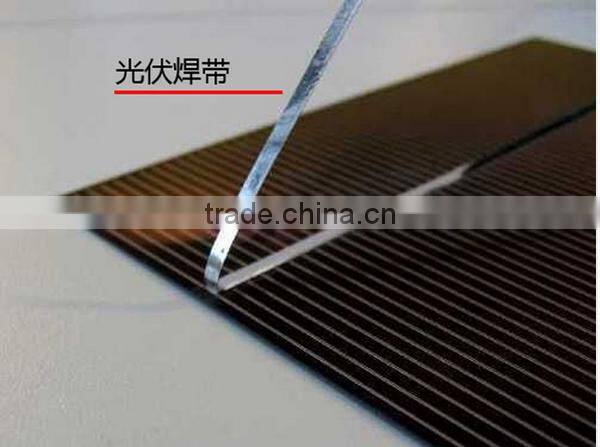

-Tabbing Ribbon: it is commonly connects the positive and negative sides of the cells in series.
-Bus bar Ribbon: it is concentrate the cell stringing into junction box and channels electrical current.
2. The Core Technology:
-Forming of round wires to flat wires through drawing and rolling
-Heat treatment
-Hot-dip tinning
-Precise spooling
3. Features and Applications:

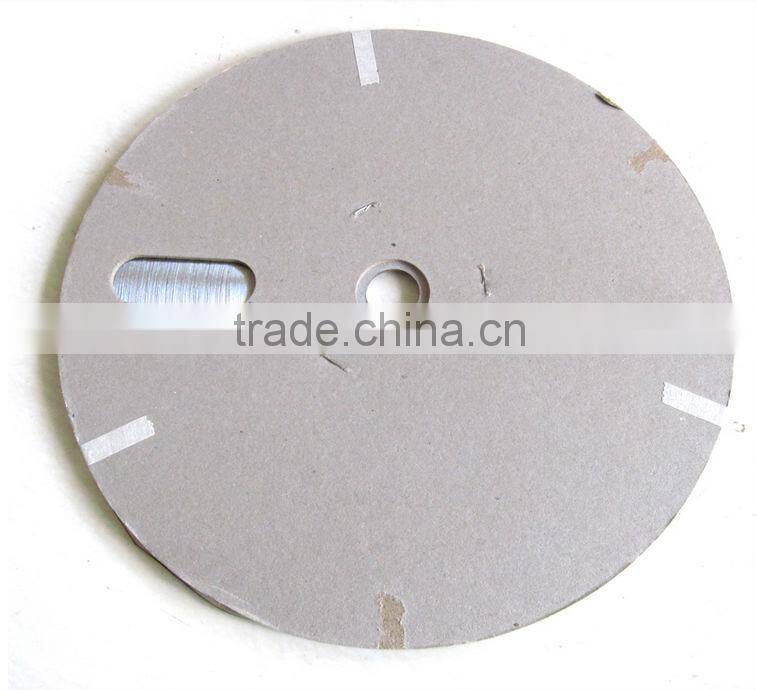

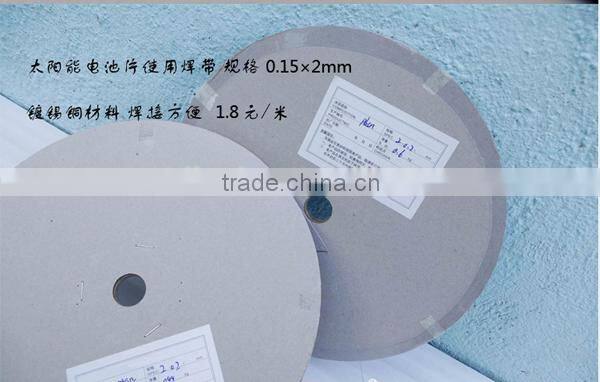

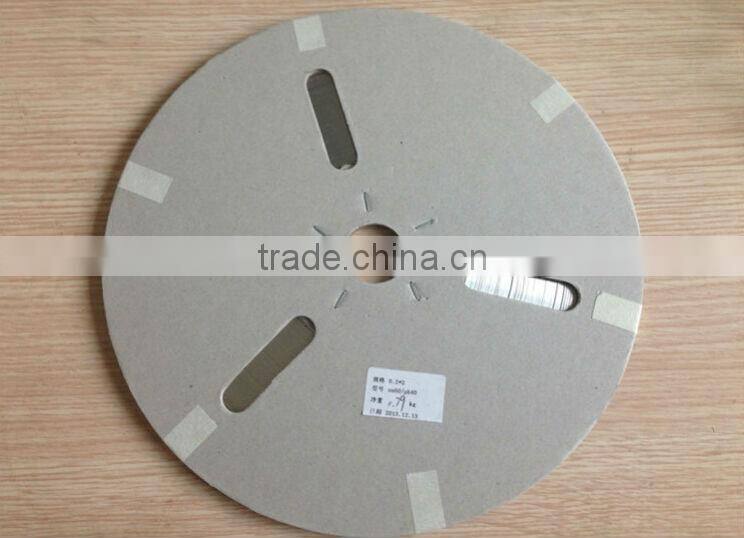

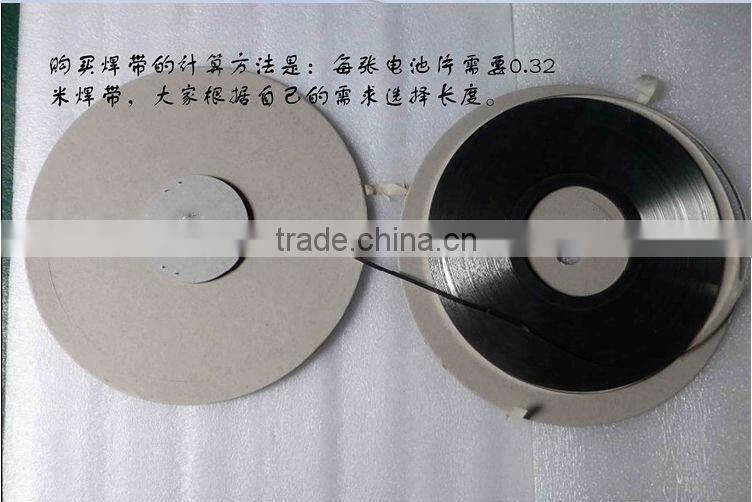

The item (tin coated copper welding ribbon) is based on size of Width*Thickness: 1.5*0.2 mm (it also can be 1.5-2.5mm * 0.08-0.25mm as your option),
sale as per lot, 2kgs/lot.
if you want buy more or less quantity, pls contact us, we will correct the price and freight cost for you.
Technical Date of SM-R1 | |
Item | Parameters |
About PV Ribbon: | PV ribbon is composed of Copper and coating alloys, and divided into Tabbing Ribbon and Bus bar ribbon. •Tabbing Ribbon: it is commonly connects the positive and negative sides of the cells in series. •Bus bar Ribbon: it is concentrate the cell stringing into junction box and channels electrical curren |
Basis brasses | oxygen –free copper wire planish ,Contain copper quantity ≥99.95%,conductivity ≥100%. |
Basis brasses electrical resistivity | electrical resistivity: oxygen-free copper ≤0.0165Ωmm2/m,T2 copper ≤0.0172Ωmm2/m |
Solder tin component | 63%Sn37%Pb,60%Sn40%Pb(TM-A), 96.5Sn3.0%Ag0.5%Cu,99%Sn1%Ag(TM-B), 62%Sn36%Pb2%Ag (TM-C) |
Solder tin melting point | 179-217°C |
Tensile strength | ≥200N/mm2 |
Extensibility | ≥25% |
Remark: 1. Environmental protection PV Ribbon has already passed SGS test with Europe Union RoHs directive standards. 2. According to customer requirements, we can provide different chemical coating and different sizes of products | |
Package | |
1. Packing details: Dust-proof, moisture-proof, earthquake, compressive strength, suitable for long distance transportation by air and by sea 1)Strong internal: plastic bags+foam boxes 2) External: commercial color carton | |
payment term | |
1. Incoterm: Ex-works; | |
2. Payment term: T/T in advance ( Western Union for sample order). | |
3. Lead time: It depends on your quantity. Usually we will send sample with 3-5 working days. | |
5. Others: If you have special specifications and requirements, we could also make customized products as per your requirement. |

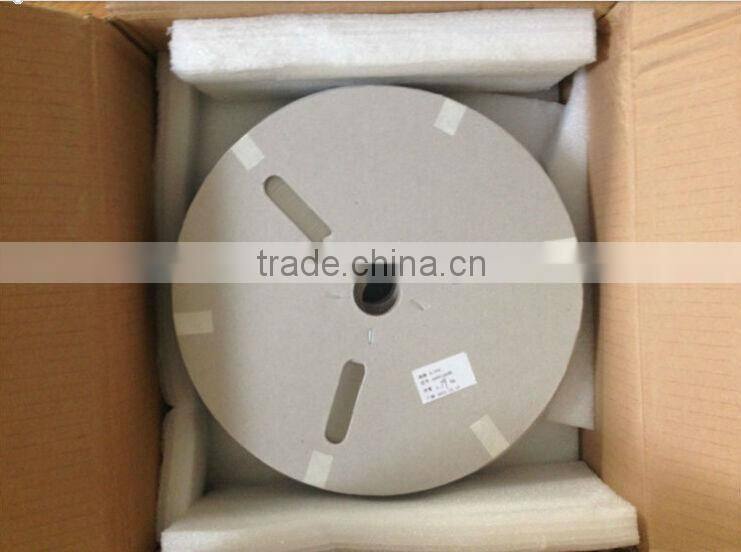

Packing details: Dust-proof, moisture-proof, earthquake, compressive strength, suitable for long distance transportation by air and by sea
1) Strong internal: plastic bags+foam boxes
2) External: commercial color carton
Our Company Hangzhou Sun Mall Solar Technology Co.,Ltd is a profrssional manufacturer of epoxy solar panel, novelty solar gifts, educational solar toys and other relative solar products. Located in Hangzhou city which is nearby Shanghai and Ningbo city. To avoid the battery pollution, all of our solar products are powered by solar cells without traditional battery. So our novelty solar products are very suitable for promotion, children teaching, high level business gifts, house garden lighting and so on.
We have established long term cooperation relationship with many clients who are from almost 35 countries including Europe and American countries. Though operating with an integrated and advanced factory with modern and fully automatic equipment and facilities. We will offer new novelty solar products for clients all along. To guarantee the product quality, all the products need to pass four stages of QC checks. That's why we assure you of our superior quality and prompt delivery.
Our solar products have outstanding features of design and quality and we are dedicated to protecting our environment. We will try to promote solar energy development and build a better future for our earth.
We hope to build business relationship with friends from all around the world.
