Home > Products > Crane System > Wireless Hook Lifting Crane Scale Manufacturer JXCS-SH

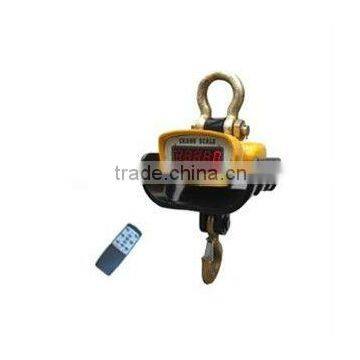

Wireless Hook Lifting Crane Scale Manufacturer JXCS-SH
- Ningbo or Shanghai
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GOLDSHINE | |
| Model Number | JXCS-SH |
Product Description
1.Specail design: Used under high temperature envoirnment. Especially in casting industry.
2.Multi-weighing units:
Kg, lb, N are selectable, generally kg are default unit.
3.Multi-function operation:
TareZeroAuto zero trackingTotalHold; Overload warning and record, Calibration through remote controller,etc functions.
4.User-friendly design:
Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Gravity compensation; Safety factor up to 7 times capacity; Battery Operated with low battery indication; Automatic turn off , power-saving function.
MAIN TECHNICAL DATA | |
Standard | According to OIML class III |
Display | 30mm (1.2'') 5digits LCD/LED |
Zero Range | 4% F.S. |
Tare Range | 20% F.S. |
Stable Time | ≤10 seconds |
Overload Indication | 100% F.S. + 9e |
Max. Safety Load | 150% F.S. |
Ultimate Load | 700% F.S. |
Battery Life | ≥70 hours |
Battery Type | Fully sealed Lead-Acid battery, 6V/7Ah |
Adapter | DC9V/1000mA |
Operating Temp. | - 10 ~ + 40 |
Operating Humidity | ≤85% RH under 20 |
Remote Controller Distance | Min. 15m |
Battery of Remote Controller | UM-4 SIZE AAA , 1.5Vx2 |
MODEL | Max Cap(kg) | Min. weigh (kg) | Division (kg) | Total display counts (n) |
JXCS -1-SH | 1000 | 10 | 0.5 | 2000 |
JXCS -2-SH | 2000 | 20 | 1 | 2000 |
JXCS -3-SH | 3000 | 20 | 1 | 3000 |
JXCS -5-SH | 5000 | 40 | 2 | 2500 |
JXCS -10-SH | 10000 | 100 | 5 | 2000 |
JXCS -15-SH | 15000 | 100 | 5 | 3000 |
Min distance between scale and high temperature:
1000 | 1200 | 1400 | 1600 |
1.6m | 1.8m | 2m | 2.2m |
MODEL | A(mm) | B(mm) | C(mm) | H(mm) | N.W |
JXCS -1-SH | 100 | 20 | 40 | 600 | 14kg |
JXCS -2-SH | 100 | 20 | 40 | 600 | 14kg |
JXCS -3-SH | 130 | 20 | 45 | 720 | 24kg |
JXCS -5-SH | 145 | 20 | 60 | 850 | 44kg |
JXCS -10-SH | 170 | 25 | 85 | 900 | 60kg |
JXCS -15-SH | 170 | 25 | 85 | 900 | 60kg |
