Combination Machines CNC450T Cnc Lathe Slant and Cnc Metal Spinning Machine
- qingdao port
- T/T Credit Card
You May Like
-
Cnc Metal Spinning Machine CNC550B-1 Cnc Lathe Slant /combination Machines
-
Mechanical Lathe CNC350T Cnc Lathe Slant /cnc Metal Spinning Machine
-
Cnc Metal Spinning Machine CNC350A Slant Bed Cnc Lathe and Combination Machines
-
Cnc Lathe Slant CNC150B Cnc Turning Center and Cnc Metal Spinning Machine
-
Cnc Lathe Slant CNC350B Cnc Turning Center and Cnc Metal Spinning Machine
-
Mechanical Lathe CNC550A Cnc Lathe Slant /cnc Metal Spinning Machine
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 450mm | Place of Origin | Shandong, China | |
| Brand Name | HaiShu | Model Number | CNC450T | |
| Voltage | 380v 50hz | Power(W) | 11KW | |
| Dimension(L*W*H) | 3500x1650x1900mm | Weight | 6800kg | |
| Certification | CE ISO TUV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
combination machines CNC450T cnc lathe slant and cnc metal spinning machine
CNC(T)Series two spindle two turret CNC turning center
No. | Item | Unit | specifications | ||||
CNC150T | CNC250T | CNC350T | CNC450T | CNC550T | |||
1 | Max.rotation diameter on lathe’ body | mm | 150 | 250 | 350 | 450 | 550 |
2 | piece length | mm | 750/1000/1500 | ||||
3 | Max.turning diameter | mm | 100 | 200 | 300 | 400 | 500 |
4 | Spindle nose type and code | mm | A6 | A6 | A8 | A8 | A11 |
5 | 2-Hydraulic chuck | mm | 2-φ80 (4") | 2-φ160 (6") | 2-φ200 (8") | 2-φ250 (10") | 2-φ300 (12") |
6 | Front spindle bore taper |
| 1:20 | ||||
7 | Spindle bore | mm | 38 | 40 | 50 | 60 | 75 |
8 | 2- Servo spindle speed range | mm/min | 0-4000 | ||||
9 | X/Z/B Rapid traverse | mm/min | 40000 | ||||
10 | Cs1,Cs2 main servo motor power | kW | 3.7 | 5.5 | 7.5 | 11 | 15 |
11 | C-axis(Turret power axis) motor power | kw | 2.2 | 3.7 | 3.7 | 5.5 | 5.5 |
12 | X/Z-axis motor max.torque | N.m | 6 | 10 | 10 | 10 | 15 |
13 | Y-axis travel(optional) | mm | +20/-20 | +25/-25 | +35/-35 | +45/-45 | +55/-55 |
14 | B-axis(sub-spindle) motor max.torque | N.m | 10 | 15 | 15 | 15 | 20 |
15 | Power specifications | v | 380±10%. 50Hz±1Hz | ||||
16 | Turret transfer time (one station) | s | 1.6(12) | ||||
17 | Turret transfer repeat positioning accuracy | mm | 0.005" | ||||
18 | X1/X2-axis travel | mm | 100 | 150 | 200 | 300 | 350 |
19 | Z1/Z2-axis travel | mm | 1100/1350/1850 | ||||
20 | B-axis (sub-spindle) travel | mm | 1400/1650/2150 | ||||
21 | 2-C axis(Turret power axis) max.speed | rpm | 4000 | ||||
22 | Biaxial dynamic docking concentricity | mm | 0.004 | 0.004 | 0.005 | 0.005 | 0.005 |
23 | Ydraulic servo turret form |
| 2-Horizontal 12-station servo power turret | ||||
24 | Turret cylinder clamping force | kg | 2350 | 2350 | 4240 | 4240 | 4524 |
25 | Turret hydraulic power source | kg/cm² | 30 | 30 | 40 | 40 | 45 |
26 | Power tool holder specification |
| VDI30 DIN5480 | VDI30 DIN5480 | VDI40 DIN5480 | BMT55 -ER25 | BMT65 -ER32 |
27 | Knife handle size | mm | 16×16 | 20×20 | 20×20 | 25×25 | 25×25 |
28 | Net weight | kg | 3800 | 4600 | 5500 | 6800 | 8200 |
29 | Size(L×W×H) | mm | 2700/3000/3500×1650×1900 | ||||
Standard configuration:

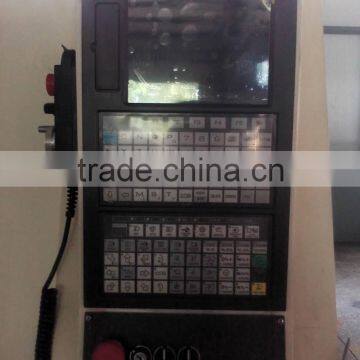

1.CNC system: GSK988TT
2.Two servo spindle unit

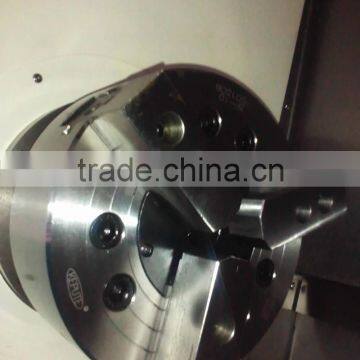

3.Two hydraulic center solid chuck
4.Horizontal 12-station hydraulic servo power turret
5.5-Axis line rail
6.Turning cooling system
7.Automatic lubrication system
8.The whole protection system
Select Configuration:
1.CNC system: Fanuc, Siemens
2.Increasing the Y-axis
3.Two hydraulic hollow chuck
4.Automatic feeder
5.Automatic chip conveyor
6.Automatic pick pieces equipment
7.Automatic protective door
8.Loading and unloading robots
If you are interested in combination machines CNC450T cnc lathe slant and cnc metal spinning machine , welcome to leave a message or send the inquiry to understand the details of machine.
