mechanical lathe CNC350T double spindle cnc lathe machine /combination machines
- qingdao
- T/T Credit Card
You May Like
-
mechanical lathe CNC350A slant bed cnc lathe and combination machines
-
mechanical lathe CNC150B cnc turning center and combination machines
-
cnc turning center CNC550B mechanical lathe /combination machines
-
mechanical lathe CNC550A double spindle cnc lathe machine /combination machines
-
mechanical lathe CNC550T double spindle cnc lathe machine /combination machines
-
cnc turning center CNC250B mechanical lathe/combination machines
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 350MM | Place of Origin | Shandong, China | |
| Brand Name | HAISHU | Model Number | CNC350T | |
| Voltage | 380v | Power(W) | 7500w | |
| Dimension(L*W*H) | 2200X1350X1750mm | Weight | 4000KG | |
| Certification | CE,ISO.TUV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
mechanical lathe CNC350T double spindle cnc lathe machine /combination machines
Main technical parameters:
No. | Item | Unit | Technical parameters | ||||
CNC350T | |||||||
1 | Maximum turning diameter on lathe’ body | mm | 350 | ||||
2 | Maximum workpiece length | mm | 350/450/550 | 650/750/1000 | |||
3 | Maximum turning diameter | mm | 300 | ||||
4 | Spindle nose type and code | mm | A8 | ||||
5 | Hydraulic chuck | mm | 2-φ200(8") | ||||
6 | Front spindle bore taper | 1:20 | |||||
7 | Spindle bore | mm | 60 | ||||
8 | Maximum load-bearing chucked components | kg | 500 | ||||
9 | 2 - servo spindle motor speed | mm/min | 0-8000 | ||||
10 | Rapid traverse X / Z | mm/min | 40000 | ||||
11 | CS1; CS2 main servo motor power | kW | 7.5 | ||||
12 | X servo motor maximum torque | N.m | 10 | ||||
13 | Z, Y servo motor maximum torque | N.m | 15 | ||||
14 | Power Specifications | v | 380±10%. 50Hz±1Hz | ||||
15 | Carrier transfer time (one station) | s | 1.6(Horizontal 12) | ||||
16 | Carrier transfer repeat positioning accuracy | 0.005" | |||||
17 | X-axis travel | mm | 200 | ||||
18 | Z-axis travel | mm | 350/450/550 | 650/750/1000 | |||
19 | B-axis(sub-spindle) travel | mm | 650/750/850 | 950/1050/1300 | |||
20 | Y-axis travel | mm | 150 | ||||
21 | Biaxial dynamic docking concentricity | mm | 0.005 | ||||

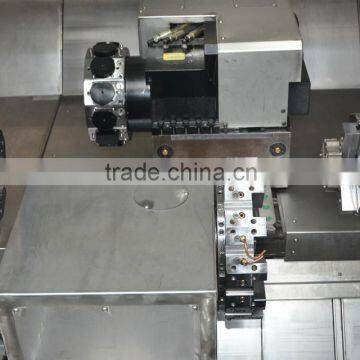

22 | Hydraulic servo turret form | Horizontal 12-station power turret | |||||
23 | Knife handle size | mm | 25×25 | ||||
24 | Net weight | kg | 4000 | ||||
25 | Size(L×W×H) | mm | 2000/2100/2200×1350×1750 | ||||
Standard configuration:
1.Taiwan control system
2.Hydraulic solid chuck
3.Cutting cooling system
4.X.Z axis linear guide
5.The spindle unit and motor
6.Horizontal 12 station servo turret
7.Bearing NSK
8.Fully enclosed protection system
If you are interested in mechanical lathe CNC350T double spindle cnc lathe machine /combination machines , welcome to leave a message or send the inquiry to understand the details of machine.
