Product Details
| Condition | New | Type | Turning Center | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 350mm | Place of Origin | Shandong, China | |
| Brand Name | HaiShu | Model Number | CNC350B | |
| Voltage | 380v 50hz | Power(W) | 7.5kw | |
| Dimension(L*W*H) | 3000x1650x1900mm | Weight | 4200kg | |
| Certification | CE ISO TUV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

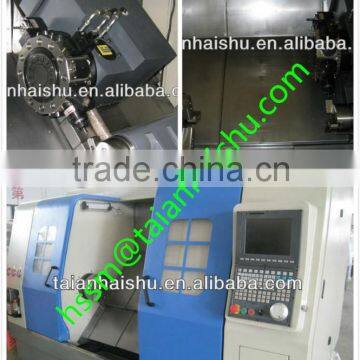

cnc lathe slant CNC350B cnc turning center and combination machines
Specification
No. | Item | Unit | CNC350Bspecifications |
1 | Max.rotation diameter on lathe’ body | mm | 350 |
2 | piece length | mm | 750 |
3 | Max.turning diameter | mm | 300 |
4 | Spindle nose type and code | A8 | |
5 | Hydraulic chuck | mm | φ200(8") |
6 | Front spindle bore taper |
| 1:20 |
7 | Spindle bore | mm | 60 |
8 | Spindle form |
| Servo spindle unit |
9 | Servo spindle speed range | rpm | 20-3000 |
10 | X/Z Rapid traverse | mm/min | 40000 |
11 | Main servo motor power | kW | 7.5 |
12 | X/Z-axis motor max.torque | N.m | 10 |
13 | Power specifications | v | 380±10%. 50Hz±1Hz |
14 | Turret transfer time (one station) | s | 1.612) |
15 | Turret transfer repeat positioning accuracy |
| 0.005" |
16 | X-axis travel | mm | 200 |
17 | Z-axis travel | mm | 1100/1350/1850 |
18 | B-axis travel | mm | 1100/1350/1850 |
19 | Hydraulic turret form |
| Horizontal 12 servo power turret |
20 | Tailstock sleeve diameter/ travel | mm | 65/100 |
21 | Tailstock tapered bore taper | Morse | 4# |
22 | Tailstock form (programming optional) |
| Electric drive |
23 | Tailstock sleeve form |
| Hydraulic drive |
24 | Knife handle size | mm | 20×20 |
25 | Net weight | kg | 4200 |
26 | Machine size | mm | 3000×1650×1900 |
Standrd configurations:
1.GSK980TDc controllers sytem
2.Servo spindle unit
3.Hydraulic solid chuck
4.Horizontal 12 hydraulic servo turret
5.Three axis linear guide
6.Electric tailstock,hydraulic sleeve
7.Turning coolant system
8.Auto lubrication system
9.Whole protection door
Optional configurations:
1.fanuc/siemens controller system
2.Hydraulic hollow chuck
3.Electric and programming tailstock
4.Auto bar feeder
5.Auto chip cleaner
6.Auto catcher device
7.Auto protection door
8.Loading robot
If you are interested in cnc lathe slant CNC350B cnc turning center and combination machines , welcome to leave a message or send the inquiry to understand the details of machine.
