Mechanical Lathe CNC450B-1 Cnc Lathe Slant and Multi Miller
- QINGDAO
- T/T Credit Card
You May Like
-
CNC Turning Center, Turning Milling Drilling Tapping Lathe,L CNC350T,drilling Lathe.
-
CNC350T Two Spindle Two Turret CNC Turning Center, CNC Lathewith Good Price
-
Newly-developed CNC Turning Center, Turning Milling Drilling Tapping Lathe,L CNC350T
-
Cs1,Cs2 Main Servo Motor Power: 7.5kW CNC Turning Center, Turning Milling Drilling Tapping Lathe Machine Tool MDOEL CNC350T
-
CNC350T Two Spindle Two Turret CNC Turning Center, CNC Lathe on Promption
-
Sold in USA, CE Newly-developed CNC Turning Center, Turning Milling Drilling Tapping Lathe Machine Tool
Product Details
| Condition | New | Type | Horizontal | |
| Place of Origin | Shandong, China | Brand Name | HAISHU | |
| Model Number | cnc450b-1 | Voltage | 380v 50hz | |
| Power(W) | 11000 | Dimension(L*W*H) | 3000x1600x1950 | |
| Weight | 5000 KG | Certification | ISO9001,CE.TUV | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

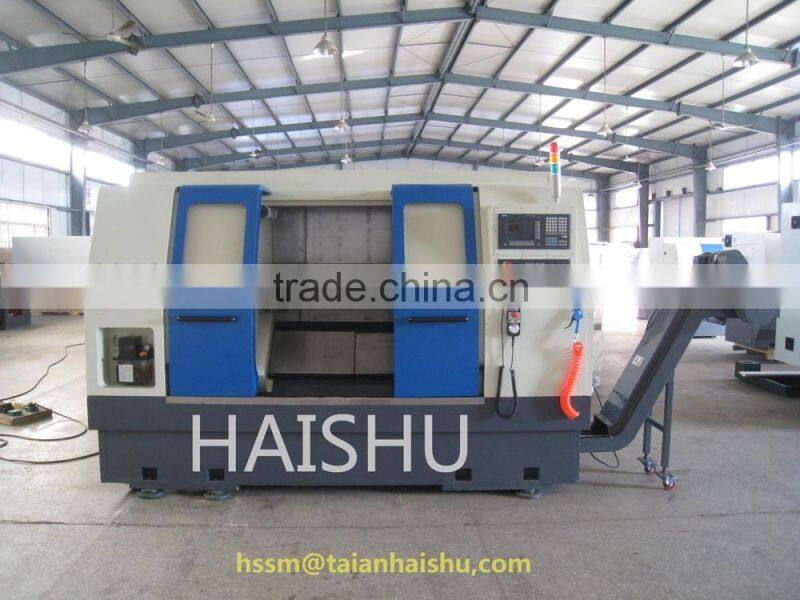

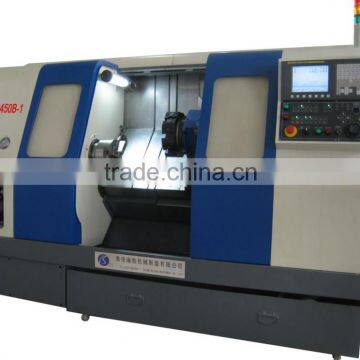

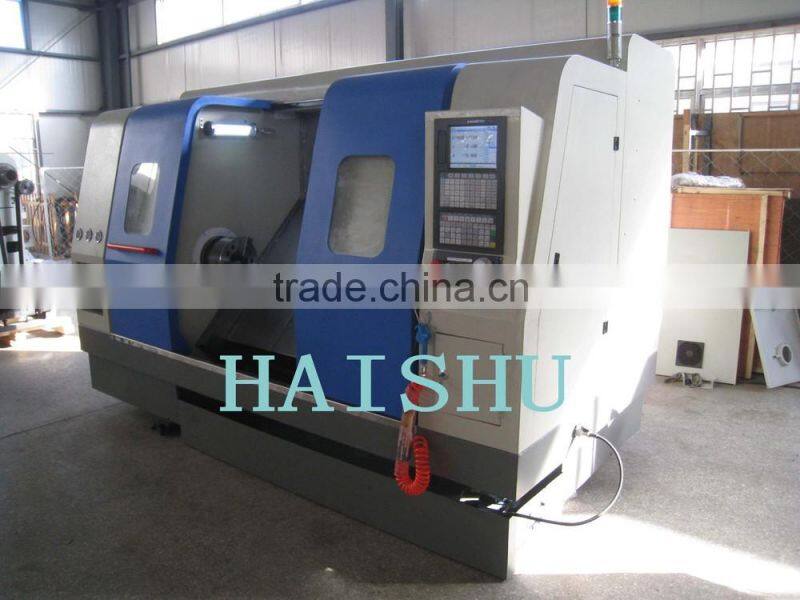

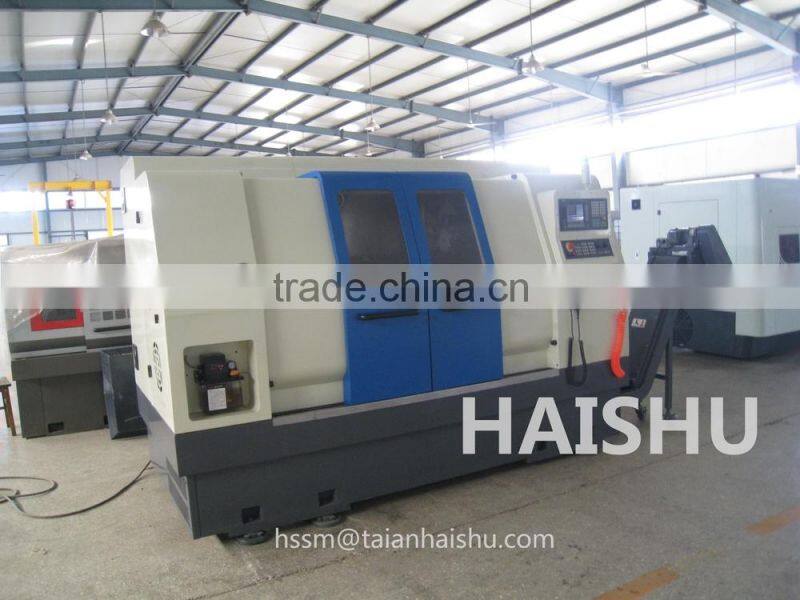

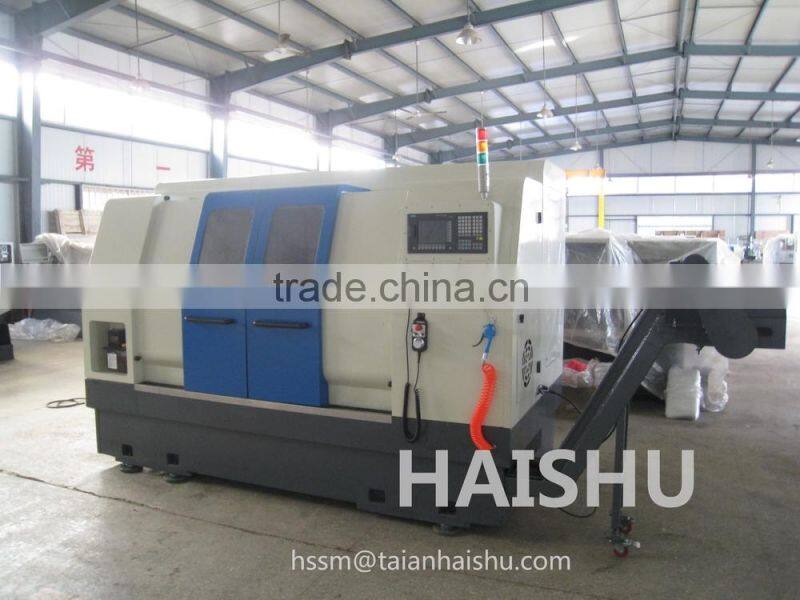

mechanical lathe CNC450B-1 cnc lathe slant and multi miller
Technical parameters
No. | Item | Unit | specifications |
CNC450B-1 | |||
1 | Max.rotation diameter on lathe’ body | mm | 450 |
2 | piece lengt | mm | 750/1000/1500 |
3 | Max.turning diameter | mm | 400 |
4 | Spindle nose type and code | mm | A8 |
5 | Hydraulic chuck1 | mm | φ250(10") |
6 | Spindle form |
| Servo spindle unit |
7 | Front spindle bore taper |
| 1:20 |
8 | Spindle bore | mm | 60 |
9 | 2- spindle speed range | rpm | 0-4000 |
10 | X/Z/B Rapid traverse | mm/min | 40000 |
11 | Cs1,Cs2 main servo motor power | kW | 11 |
13 | X/Z-axis motor max.torque | N.m | 10 |
15 | B-axis(sub-spindle) motor max.torque | N.m | 15 |
16 | Power specifications | v | 380±10%. 50Hz±1Hz |
17 | turret transfer time (one station) | s | 1.6(horizontal 12) |
18 | Turret transfer repeat positioning accuracy | mm | 0.005" |
19 | X-axis travel | mm | 300 |
20 | Z-axis travel | mm | 1100/1350/1850 |
21 | Tailstock sleeve diameter/travel | mm | 70/100 |
22 | Tailstock tapered bore taper | rpm | 4000 |
24 | hydraulic servo turret form |
| Horizontal 12-station servo power turret |
28 | Knife handle size | mm | 25×25 |
29 | Net weight | kg | 5000 |
30 | Size(L×W×H) | mm | 2700/3000/3500×1650×1900 |
Standard configuration:
CNC system: GSK980TDc
Spindle 3-gears frequency control speed
hydraulic center solid chuck

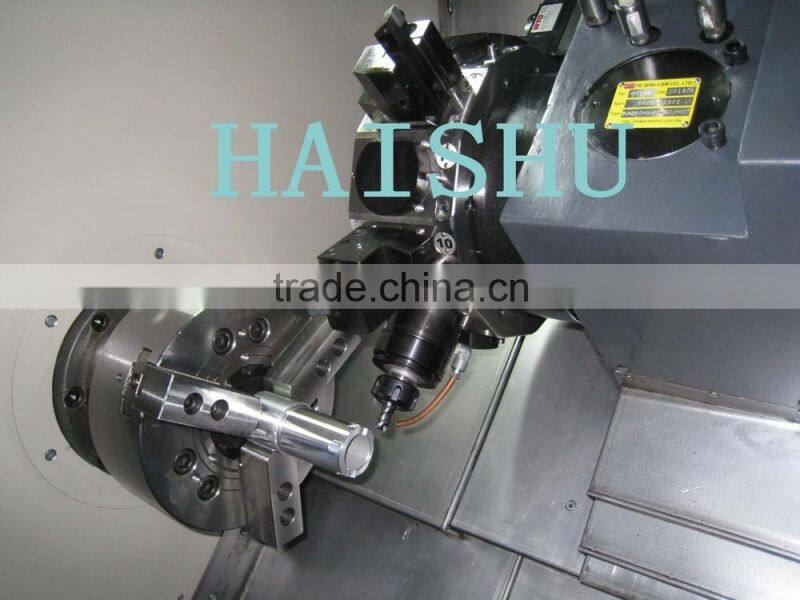

Horizontal 12-station hydraulic turret
3-axis hard rail
Electric tailstock,hydraulic sleeve
Turning cooling system
Automatic lubrication system
Whole protection system
Select Configuration:
CNC system : SYNTEC , Fanuc systems, Siemens system
Servo spindle unit
Hydraulic hollow chuck
3-axis line rail
Programming electric tailstock
Automatic feeder
Automatic chip conveyor
Automatic pick pieces equipment
Automatic protective door
Loading and unloading robots
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in mechanical lathe CNC450B-1 cnc lathe slant and multi miller, welcome to leave a message or send the inquiry to understand the details of machine.
