Home > Products > Turning center > Tornos Metal CNC350T Cnc Lathe Slant /multi-purpose Lathe Machine

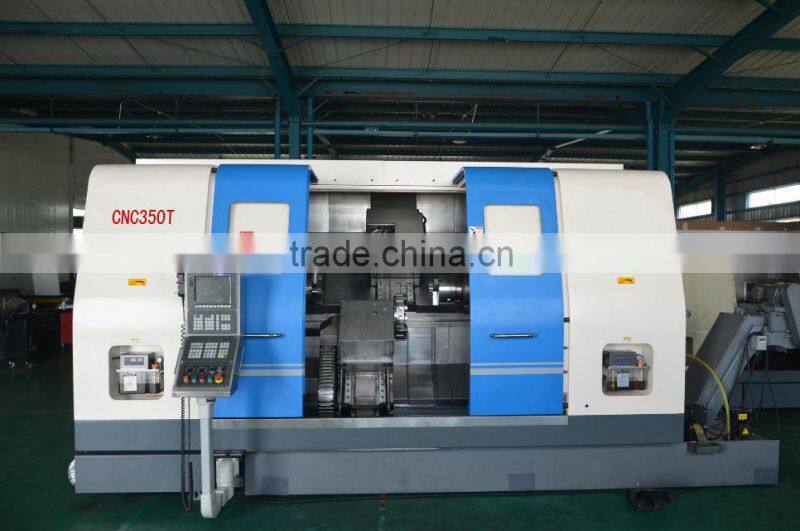

Tornos Metal CNC350T Cnc Lathe Slant /multi-purpose Lathe Machine

FOB Price

US$ 10,000 - 100,000 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	350MM	Place of Origin	Shandong, China
Brand Name	HAISHU	Model Number	CNC350T
Voltage	380v	Power(W)	7500w
Dimension(LWH)	2200X1350X1750mm	Weight	4000KG

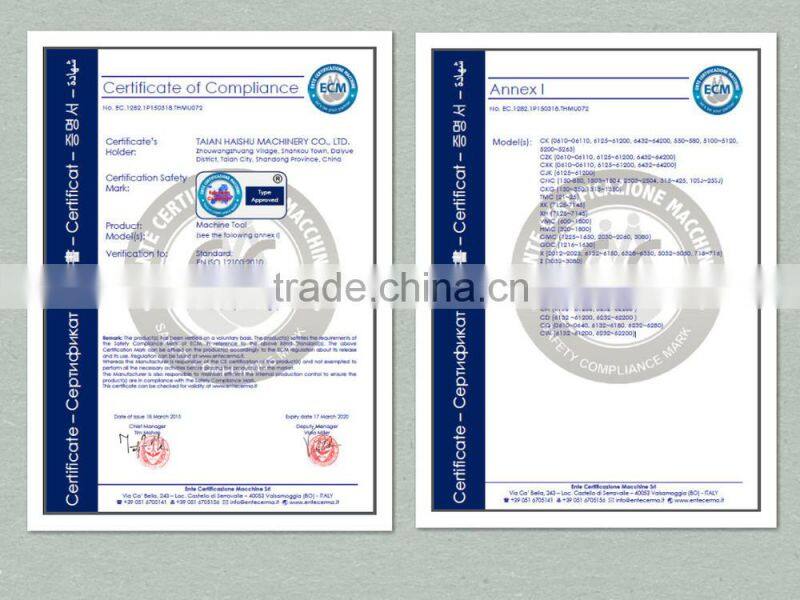

Certification	CE,ISO.TUV	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

tornos metal CNC350T cnc lathe slant / multi-purpose lathe machine

Main technical parameters:

No.	Item	Unit	Technical parameters
			CNC350T
1	Maximum turning diameter on lathe’ body	mm	350
2	Maximum workpiece length	mm	350/450/550	650/750/1000
3	Maximum turning diameter	mm	300
4	Spindle nose type and code	mm	A8
5	Hydraulic chuck	mm	2-φ200(8")
6	Front spindle bore taper		1:20
7	Spindle bore	mm	60
8	Maximum load-bearing chucked components	kg	500
9	2 - servo spindle motor speed	mm/min	0-8000
10	Rapid traverse X / Z	mm/min	40000
11	CS1; CS2 main servo motor power	kW	7.5
12	X servo motor maximum torque	N.m	10
13	Z, Y servo motor maximum torque	N.m	15
14	Power Specifications	v	380±10%. 50Hz±1Hz
15	Carrier transfer time (one station)	s	1.6(Horizontal 12)
16	Carrier transfer repeat positioning accuracy		0.005"
17	X-axis travel	mm	200
18	Z-axis travel	mm	350/450/550	650/750/1000
19	B-axis(sub-spindle) travel	mm	650/750/850	950/1050/1300
20	Y-axis travel	mm	150
21	Biaxial dynamic docking concentricity	mm	0.005

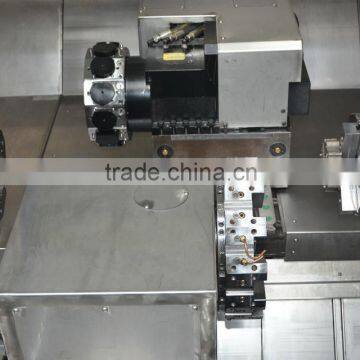

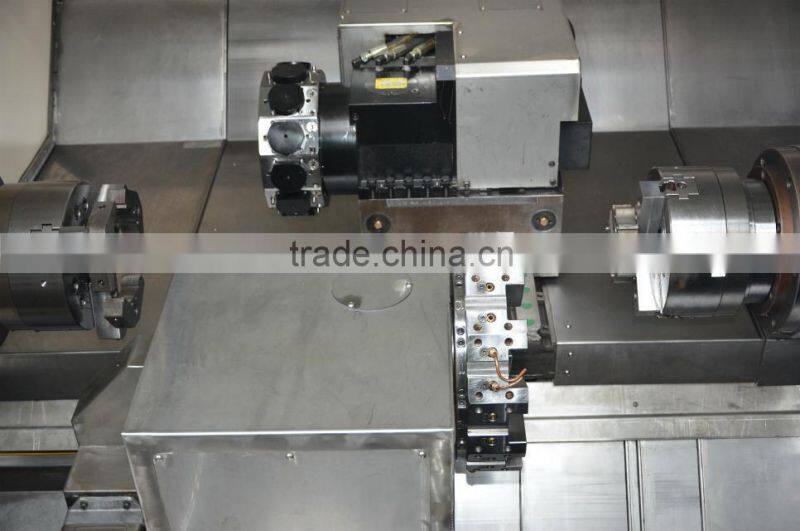

22	Hydraulic servo turret form		Horizontal 12-station power turret
23	Knife handle size	mm	25×25
24	Net weight	kg	4000
25	Size(L×W×H)	mm	2000/2100/2200×1350×1750

Standard configuration:

1.Taiwan control system

2.Hydraulic solid chuck

3.Cutting cooling system

4.X.Z axis linear guide

5.The spindle unit and motor

6.Horizontal 12 station servo turret

7.Bearing NSK

8.Fully enclosed protection system

If you are interested in tornos metal CNC350T cnc lathe slant / multi-purpose lathe machine , welcome to leave a message or send the inquiry to understand the details of machine.
