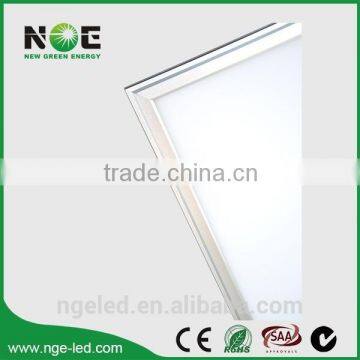

CE TUV SAA driver CRI>80 PF>0.95 60w ultra flat led light panels 600x600
- 5000 Piece / Pieces per Month
- Shenzhen Hong Kong
- T/T Credit Card
You May Like
-
IP44 CE TUV SAA driver CRI>80 led panel 600x600 48w
-
Ra80 Samsung G2 5630 Lifud driver 8inch 24w led downlight
-
Samsung G2 5630 SMD ul driver cri>80 8 inch smd led downlight 30w
-
china led downlight 95lm/w Samsung 5630 G2 6 inch 24w led downlight round
-
hote sale Samsung SMD5630 LED down lightings cold white 15w
-
3 years warranty high power indoor led downlight 5 inch 15w saa led downlight
Product Details
| LED Light Source | Epistar 2835 SMD | Warranty(Years) | 3 | |
| Input Voltage(V) | AC100-240V, 50-60Hz | Lamp Power(W) | 60 | |
| Lamp Luminous Flux(lm) | 5100lm±5% | Lamp Luminous Efficiency(lm/w) | 85 | |
| Color Temperature(CCT) | Other, 3000-3500K,4000-4500K,5500-6500K | Working Temperature(℃) | -40, 60 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Other, Oxidized Aluminum + Quality PMMA light guide panel | |
| IP Rating | Other, IP44 | Certification | CE, EMC, FCC, LVD | |
| Place of Origin | Guangdong, China | Brand Name | NGE | |
| Model Number | NGE-P0606-S60W |
Product Description
Specifications
ultra flat led light panels 600x60085lm/w,CRI>80
TUV,CE,SAA driver PF>0.95
Dimming available
CE&RoHS,3 years warranty
CE TUV SAA driver CRI>80 PF>0.95 60w ultra flat led light panels 600x600
Product Features of CE TUV SAA driver CRI>80 PF>0.95 60w ultra flat led light panels 600x600
- LED: Taiwan Epistar 2835 SMD, light efficiency of LED panel 85lm/w;
- Driver: TUV, CE, SAA approved constant current drivers, PF>0.95;
- Excellent PMMA optical light guide panels, very uniform lighting;
- Patent design frame, easy installation for any application;
- Side emitting model, super light and thickness 11mm;
- Triac and 0-10V dimming models are available;
- Beam angle:>110°, Ra>80, IP44, CLASS II
- Certificate: CE, RoHS
- Warranty: 3 years
Installation types:
1. Normal recessed installation;
2. Steel wires installation;
3. Spring clips installation;
4. Ceiling mounted by aluminum frame.
Technical Parameters of CE TUV SAA driver CRI>80 PF>0.95 60w ultra flat led light panels 600x600
Product Name | ultra flat led light panels 600x600 |
Item Number | NGE-P0606-S60W |
Rated Power | 60W |
Input Voltage | AC100-240V |
Driver | TUV, CE, SAA approved |
Power Factor | >0.95 |
LED Type | Taiwan Epistar 2835 SMD |
Luminous Flux | 5100lm±5% |
Color Temperature | 3000-3500K,4000-4500K,5500-6500K |
CRI | > Ra80 |
Product Size | 595x595x11mm |
Dimming model | Triac, 0-10V dimming |
Main Materials | Oxidized aluminum+PMMA light guide panel |
Temperature | -40~60°C |
Lifetime | L70>35,000hours |
Warranty | 3 years |
Certificate | CE,RoHS |
Trade Info
Trade Terms | EXW, FOB, CIF |
| Payment Terms | T/T, Paypal, West Union, L/C |
| Payment Condition | in advance for samples; 50% deposit and 50% balance paid for bulk order before shipment |
| Packing | Neutral carton |
| Delivery Time | 5-7 working days for samples; 15-20 working days for formal bulk order |
| Shipping | By sea, by air, by express |
Product Pictures of CE TUV SAA driver CRI>80 PF>0.95 60w ultra flat led light panels 600x600
Certificates of CE TUV SAA driver CRI>80 PF>0.95 60w ultra flat led light panels 600x600
Series Products of CE TUV SAA driver CRI>80 PF>0.95 60w ultra flat led light panels 600x600
| Size (mm) | Item No. | Input Voltage | Power | Lumen (LM) | Color Temperature | LED Type |
| 595X595mm (600X600) | NGE-P0606-S30W | AC100-240V 50-60Hz | 30W | 2550lm±5% | 3000-3500K 4000-4500K 5500-6500K | 2835 SMD |
| NGE-P0606-S36W | 36W | 3060lm±5% | ||||
| NGE-P0606-S42W | 42W | 3570lm±5% | ||||
| NGE-P0606-S48W | 48W | 4080lm±5% | ||||
| NGE-P0606-S60W | 60W | 5100lm±5% | ||||
| 1195X295mm (1200X300) | NGE-P1203-S36W | 36W | 3060lm±5% | |||
| NGE-P1203-S48W | 48W | 4080lm±5% | ||||
| NGE-P1203-S60W | 60W | 5100lm±5% | ||||
| 295X295mm (300X300) | NGE-P0303-S12W | 12W | 1020lm±5% | |||
| NGE-P0303-S18W | 18W | 1530lm±5% | ||||
| 595X295mm (600X300) | NGE-P0603-S18W | 18W | 1530lm±5% | |||
| NGE-P0603-S27W | 27W | 2295lm±5% | ||||
| 620X620mm (600X600) Germany Size | NGE-P0606G-S36W | 36W | 3060lm±5% | |||
| NGE-P0606G-S48W | 48W | 4080lm±5% | ||||
| NGE-P0606G-S60W | 60W | 5100lm±5% | ||||
| 1195X595mm (1200X600) | NGE-P1206-S60W | 60W | 5100lm±5% | |||
| NGE-P1206-S72W | 72W | 6120lm±5% |
Packing Information of CE TUV SAA driver CRI>80 PF>0.95 60w ultra flat led light panels 600x600
Production pictures of CE TUV SAA driver CRI>80 PF>0.95 60w ultra flat led light panels 600x600
Manufacturer of CE TUV SAA driver CRI>80 PF>0.95 60w ultra flat led light panels 600x600
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED panel, LED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology has more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
