Home > Products > LED Downlight > 85lm/w Ra80 beam angle 35/60 degree 6 inch 12w led downlight cob
85lm/w Ra80 beam angle 35/60 degree 6 inch 12w led downlight cob
- 20000 Piece / Pieces per Month
- Shenzhen Hong Kong
- T/T Credit Card
You May Like
-
4 Inch 10 watt smd led downlight fitting
-
Samsung 5630 95lm/w Ra80 4 inch led downlight 9w
-
Samsung SMD 3 Inch 5W led recessed downlight
-
4 Inch 10 watt surface mounted round downlight led
-
new 85lm/w CRI>83 Samsung smd 60w high power round led downlights adjustable
-
85lm/w Samsung smd 38W led adjustable shopfitting
Product Details
LED Light Source | Sharp COB | Warranty(Years) | Three Years | |
Input Voltage(V) | AC100-240V | Lamp Power(W) | 12 | |
Lamp Luminous Flux(lm) | 1020lm±5% | Lamp Luminous Efficiency(lm/w) | 85 | |
Color Temperature(CCT) | Other, 2700-7000K | Working Temperature(℃) | -30, 45 | |
Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
IP Rating | Other, IP20 | Certification | C-tick, CE, EMC, LVD, SAA | |
Model Number | NGE-COB01-D12W6 | Place of Origin | Guangdong, China | |
Brand Name | NGE |
Product Description
85lm/w Ra80 beam angle 35/60 degree 6 inch 12w led downlight cob
NGE LED downlight cob is the ideal replacement for the conventional downlight, energy-saving above 60%. Designed with advanced heat dissipation structure, used high brightness Sharp COB LED and super constant current driver, NGE LED downlight cob is much better than most similar LED downlight cob in the market.
Benefits
Replacement for traditional downlight
Energy saving over 60%
Environmental protection, no pollution
Significant reduction in maintenance cost
High CRI>80

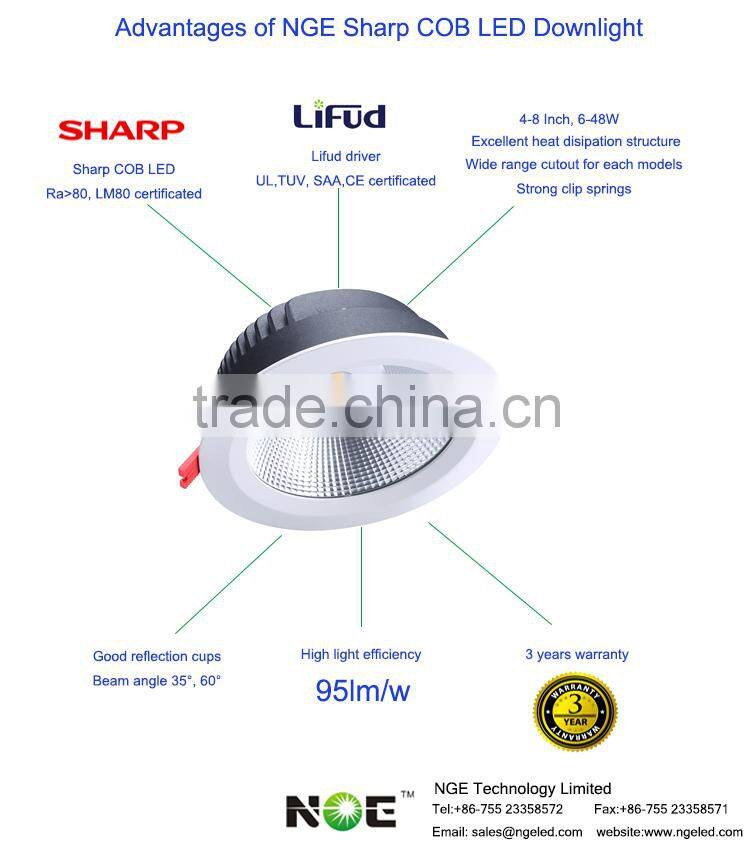

Features
LED: Sharp COB LED, CRI>80, light efficiency of downlight 85lm/w;
Driver: TUV, CE, SAA, UL listed, conversion efficiency above 85% and PF>0.95;
Thermal technology: Advanced fins design with first class radiator materials;
Wide range frame and cutout design, fully meet different requirements.
Small beam angle 35°/60° Anti-Glare design;
Certificate: CE, SAA approval and RoHS compliant;
Warranty: 3 years.
Product Specification
Specification for 85lm/w Ra80 beam angle 35/60 degree 6 inch 12w led downlight cob | ||
General Information | Product Type | 6 inch 12w led downlight cob |
Product Size | φ195*H56mm | |
Cutout | φ165-185mm | |
Product Color | white & black | |
Electric parameter | Driver Brand | Lifud |
Input Voltage | AC100-240V/50-60Hz | |
Power | 12W | |
PF | >0.90 | |
Optical Parameter | LED Brand | Sharp COB |
CRI | >80 | |
Color Temperature (CCT) | 2700K-7000K | |
Luminous Flux | 1020lm±5% | |
Luminous Efficiency | 85lm/w | |
Beam angle | 35°/60° | |
Others | Lifetime | 50,000Hr |
Operating temperature | -30℃~45℃ | |
Warranty | 3 years | |
Materials | AL housing+tempered glass +AL board | |
Installation | Recessed | |
Application | shops, hotel, supermarkets.,etc |
Series Products of 85lm/w Ra80 beam angle 35/60 degree 6 inch 12w led downlight cob
Item No. | Input Voltage | Power | Luminous Flux | Beam Angle | CRI | PF | Cutout |
NGE-COB01-D6W4 | AC100-240V | 6W | 510lm±5% | 35°/60° | >80 | >0.90 | φ125-145mm |
NGE-COB01-D9W4 | AC100-240V | 9W | 765lm±5% | 35°/60° | >80 | >0.90 | φ125-145mm |
NGE-COB01-D12W4 | AC100-240V | 12W | 1020lm±5% | 35°/60° | >80 | >0.90 | φ125-145mm |
NGE-COB01-D12W5 | AC100-240V | 12W | 1020lm±5% | 35°/60° | >80 | >0.90 | φ145-165mm |
NGE-COB01-D15W5 | AC100-240V | 15W | 1275lm±5% | 35°/60° | >80 | >0.90 | φ145-165mm |
NGE-COB01-D20W5 | AC100-240V | 20W | 1700lm±5% | 35°/60° | >80 | >0.90 | φ145-165mm |
NGE-COB01-D24W5 | AC100-240V | 24W | 2040lm±5% | 35°/60° | >80 | >0.90 | φ145-165mm |
NGE-COB01-D12W6 | AC100-240V | 12W | 1020lm±5% | 35°/60° | >80 | >0.90 | φ165-185mm |
NGE-COB01-D15W6 | AC100-240V | 15W | 1275lm±5% | 35°/60° | >80 | >0.90 | φ165-185mm |
NGE-COB01-D20W6 | AC100-240V | 20W | 1700lm±5% | 35°/60° | >80 | >0.90 | φ165-185mm |
NGE-COB01-D24W6 | AC100-240V | 24W | 2040lm±5% | 35°/60° | >80 | >0.90 | φ165-185mm |
NGE-COB01-D30W6 | AC100-240V | 30W | 2550lm±5% | 35°/60° | >80 | >0.90 | φ165-185mm |
NGE-COB01-D36W6 | AC100-240V | 36W | 3060lm±5% | 35°/60° | >80 | >0.90 | φ165-185mm |
NGE-COB01-D20W8 | AC100-240V | 20W | 1700lm±5% | 35°/60° | >80 | >0.90 | φ205-230mm |
NGE-COB01-D24W8 | AC100-240V | 24W | 2040lm±5% | 35°/60° | >80 | >0.90 | φ205-230mm |
NGE-COB01-D30W8 | AC100-240V | 30W | 2550lm±5% | 35°/60° | >80 | >0.90 | φ205-230mm |
NGE-COB01-D36W8 | AC100-240V | 36W | 3060lm±5% | 35°/60° | >80 | >0.90 | φ205-230mm |
NGE-COB01-D42W8 | AC100-240V | 42W | 3570lm±5% | 35°/60° | >80 | >0.90 | φ205-230mm |
NGE-COB01-D48W8 | AC100-240V | 48W | 4080lm±5% | 35°/60° | >80 | >0.90 | φ205-230mm |
Application
• Shop
• Supermarket
• Department store
• Hotel
Item No. | Quantity/Carton | Net weight/Pcs | Gross Weight/ Carton | Carton Size | Notes |
4inch COB LED downlight | 16 | 0.7kg | 16.4kg | 41*39*43.5cm | Each light packed by one PE bag, and use EPE Foam packing in each box. |
5inch COB LED downlight | 16 | 0.9kg | 19.6kg | 44*42*43.5cm | |
6inch COB LED downlight | 12 | 1.03kg | 16.6kg | 50*48*33cm | |
8inch COB LED downlight | 12 | 1.6kg | 23.6kg | 58*56*37.5cm |
NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are adjustable LED downlight, adjustable rectangular LED downlight, LED panel light, LED high bay light and LED tri-proof light.
NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are UL, TUV, SAA, CE and RoHS approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
Welcome to inquire 85lm/w Ra80 beam angle 35/60 degree 6 inch 12w led downlight cob.
