Samsung SMD 3 Inch 5 watt recessed led down light CE RoHS
- 1000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
Samsung SMD 3 Inch 5 watt China led downlight CE RoHS
-
4 Inch 10 watt Samsung smd led downlight globes
-
85lm/w CRI>83 ce smd 48W rectangular recessed led downlight
-
85lm/w CRI>83 ce rohs Samsung smd rotatable round 48w led downlight
-
85lm/w CRI>83 48W Samsung SMD led shoplight square
-
new 85lm/w CRI>83 ce rohs Samsung smd 60 watt led downlight recessed adjustable
Product Details
LED Light Source | Samsung 5630 LED | Warranty(Years) | 3 | |
Input Voltage(V) | AC85-265V | Lamp Power(W) | 5 | |
Lamp Luminous Flux(lm) | 400lm±50lm | Lamp Luminous Efficiency(lm/w) | 80 | |
Color Temperature(CCT) | Other, 3000k-3500k, 4000k-4500k, 5500k-6500k | Working Temperature(℃) | -40, 60 | |
Working Lifetime(Hour) | 35000 | Lamp Body Material | Other, Aluminum alloy, PC | |
IP Rating | IP44 | Certification | CE | |
Model Number | NGE-SMD01-D5W3 | Place of Origin | Guangdong, China | |
Brand Name | NGE |
Product Description
Specifications
SMD recessed led down light:1. uniform light, no flare
2. Samsung SMD,>100lm/w, CRI>80.
3. 3 years warranty
4. CE and RoHS
Product Features for Samsung SMD 3 Inch 5 watt recessed led down light:
1. LED: High Brightness Samsung LED, light efficiency >100lm/w, CRI>80;
2. Excellent driver: Conversion efficiency above 85% and power factor >0.90;
3. Perfect light: Used low power SMD LED, uniform light and no flare;
4. Thermal technology: Aluminum radiator inside and PC outside;
5. Certificate: CE approval and RoHs compliant;
6. Warranty: 3 years.
.

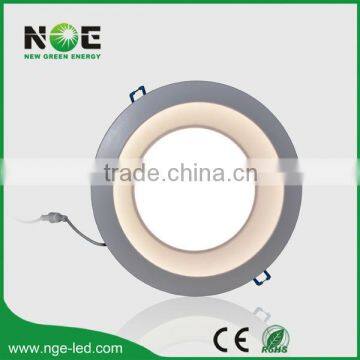

Product pictures of Samsung SMD 3 Inch 5 watt recessed led down light:
Technical parameters of Samsung SMD 3 Inch 5 watt recessed led down light:
Product Name | LED Downlight |
Item Number | NGE-SMD01-D5W3 |
Rated Power | 5W |
Input Voltage | AC85-265V 50-60Hz |
Power Factor | >0.9 |
LED Type | Samsung SMD LED |
LED Quantity | 10PCS |
Luminous Flux | 400±50LM |
Color Temperature | 3000-3500K,4000-4500K,5500-6500K |
CRI | Ra>80 |
Product Size | φ125*H77mm |
Cutout | φ90mm |
Main Materials | Aluminum alloy and tempered glass |
Working Temperature | -40~60°C |
Lifetime | >35,000hours |
Warranty | 3 years |
Certificate | CE,RoHS |
Series product of Samsung SMD recessed led down light:
Item No. | Watt | Input Voltage | Lumens | Size | Cutout | PF |
NGE-SMD01-D5W3 | 5 | AC85-265 | 400lm±50lm | φ125*H77mm | φ90mm | >0.90 |
NGE-SMD01-D8W4 | 8 | AC85-265 | 640lm±50lm | φ140*H93mm | φ120mm | >0.90 |
NGE-SMD01-D10W5 | 10 | AC85-265 | 800lm±100lm | φ180*H95mm | φ150mm | >0.90 |
NGE-SMD01-D12W5 | 12 | AC85-265 | 960lm±100lm | φ180*H95mm | φ150mm | >0.90 |
NGE-SMD01-D15W6 | 15 | AC85-265 | 1200lm±100lm | φ190*H95mm | φ170mm | >0.90 |
NGE-SMD01-D18W6 | 18 | AC85-265 | 1440lm±100lm | φ190*H95mm | φ170mm | >0.90 |
NGE-SMD01-D15W8 | 21 | AC85-265 | 1200lm±100lm | φ230*H100mm | φ200mm | >0.90 |
NGE-SMD01-D20W8 | 24 | AC85-265 | 1600lm±100lm | φ230*H100mm | φ200mm | >0.90 |
Certificates of Samsung SMD recessed led down light:
The manufacturer of LED downlight
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, L ED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology owns more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. The turnover in 2012 is estimated to be 12 million US dollars. Let's work together to devote to the new, green and eco-friendly cause for the world.
