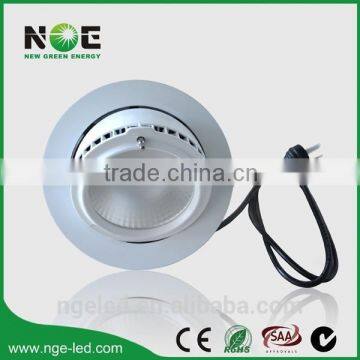

3 Years Warranty Samsung 5630 SMD 100lm/w CRI>83 Led Gimbal Downlight
- Shenzhen Hong Kong
- T/T Money Gram Credit Card
You May Like
-
Samsung 5630 SMD 100lm/w CRI>83 20w/28w/38w/50w/60w Led Shop Light
-
CE TUV SAA Driver CRI>80 PF>0.95 60w Ultra Flat Led Light Panels 600x600
-
IP44 CE TUV SAA Driver CRI>80 Led Panel 600x600 48w
-
Ra80 Samsung G2 5630 Lifud Driver 8inch 24w Led Downlight
-
Samsung G2 5630 SMD ul Driver Cri>80 8 Inch Smd Led Downlight 30w
-
China Led Downlight 95lm/w Samsung 5630 G2 6 Inch 24w Led Downlight Round
Product Details
| LED Light Source | Samsung SMD | Warranty(Years) | 3 years | |
| Input Voltage(V) | AC100~240V, 50-60Hz | Lamp Power(W) | 28 | |
| Lamp Luminous Flux(lm) | 2550LM±5% | Lamp Luminous Efficiency(lm/w) | 100 | |
| Color Temperature(CCT) | Other, 3000-3500K,4000-4500K,5500-6500K | Working Temperature(℃) | -40, 60 | |
| Working Lifetime(Hour) | 35000 | Lamp Body Material | Other, Aluminum alloy and tempered glass | |
| IP Rating | Other, IP20 | Certification | CE, EMC, LVD, SAA | |
| Model Number | NGE-SMD01-AD28W | Place of Origin | Guangdong, China | |
| Brand Name | NGE or OEM |
Product Description
Specifications
led gimbal downlightSamsung LED,100lm/w,CRI>80
PF>0.9,low THD<15%
3 years warranty
CE,RoHS,SAA,C-Tick
3 years warranty Samsung 5630 SMD 100lm/w CRI>83 led gimbal downlight
Product Features of 3 years warranty Samsung 5630 SMD 100lm/w CRI>83 led gimbal downlight
1.High Lumen Samsung SMD LED,100lm/w for whole lighting, CRI >80; Bridgelux COB LED;
2.Excellent Driver wide AC100V~240V,PF>0.90,low THD<15%.
3.Ultra-low light degradation,compliance with the U.S.Energy Star requirements,L70>35,000hrs.
4.Good thermal structure design, the fully released, lamp life last longer than 35,000hrs.
5.Dimmable and emergency version available for choice.
6.Three years warranty, CE,RoHS, SAA approved.
7.Direct replacement for traditional adjustable downlight,popular in shop,supermarket.
Technical Parameters for 3 years warranty Samsung 5630 SMD 100lm/w CRI>83 led gimbal downlight
| Product Name | led gimbal downlight |
| Item Number | NGE-SMD01-AD28W |
| Rated Power | 28W |
| Input Voltage | AC100-240V |
| Power Factor | >0.9 |
| LED Type | Samsung SMD LED |
| Luminous Flux | 2550LM±5% |
| Color Temperature | 3000-3500K,4000-4500K,5500-6500K |
| CRI | Ra>80 |
| Product Size | φ195*179mm |
| Cutout | φ165mm-185mm |
| Beam Angle | 35° , 60° |
| Adjustable Angle | 60° |
| Main Materials | Aluminum alloy and tempered glass |
| Working Temperature | -40~60°C |
| Lifetime | L70>35,000hours |
| Warranty | 3 years |
| Certificate | CE,RoHS,SAA |
Trade Info
Trade Terms | EXW, FOB, CIF |
| Payment Terms | T/T, Paypal, West Union, L/C |
| Payment Condition | in advance for samples; 30% deposit and 70% balance paid before shipment |
| Packing | Neutral carton |
| Delivery Time | 5-7 working days for samples; 15-20 working days for formal bulk order |
| Shipping | By sea, by air, by express |

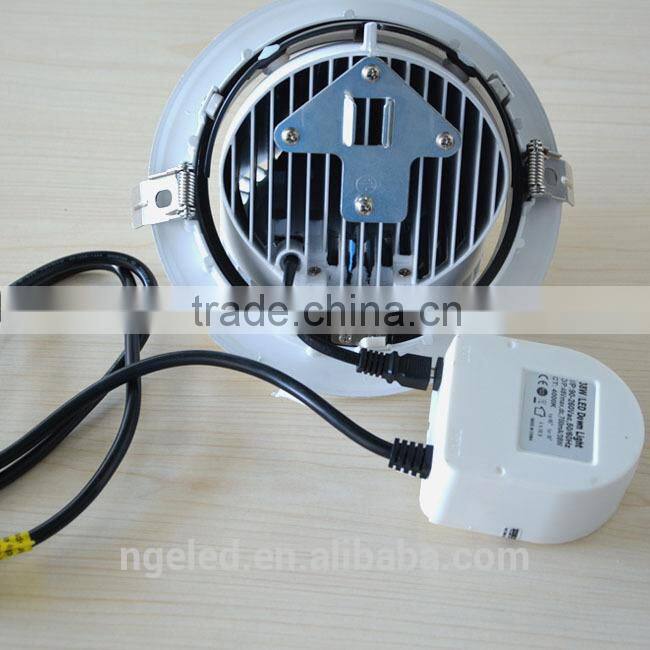

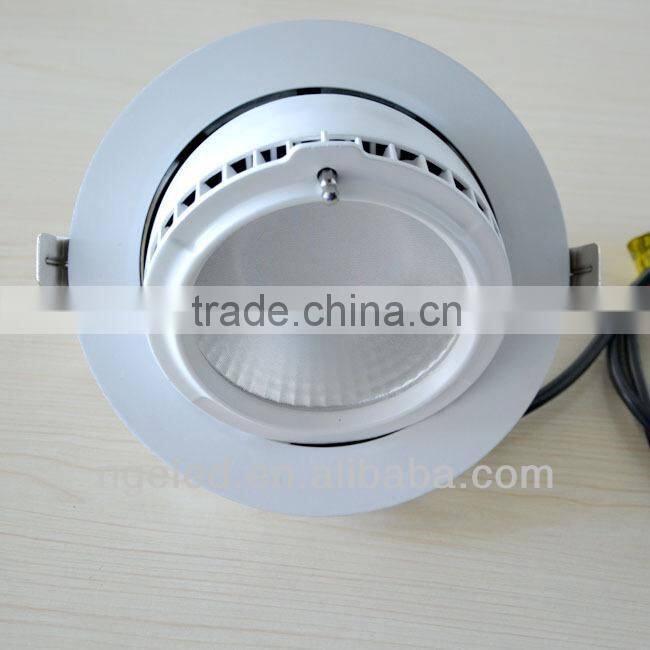

Product Pictures for 3 years warranty Samsung 5630 SMD 100lm/w CRI>83 led gimbal downlight

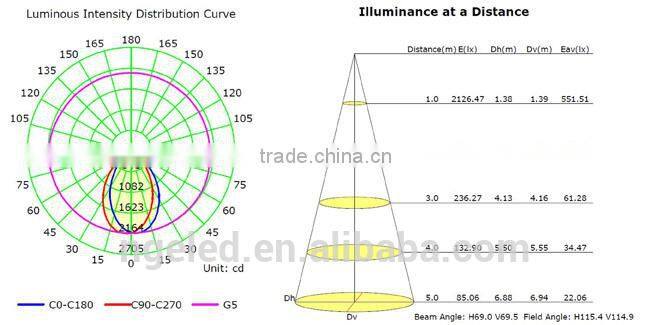

Test Report for 3 years warranty Samsung 5630 SMD 100lm/w CRI>83 led gimbal downlight

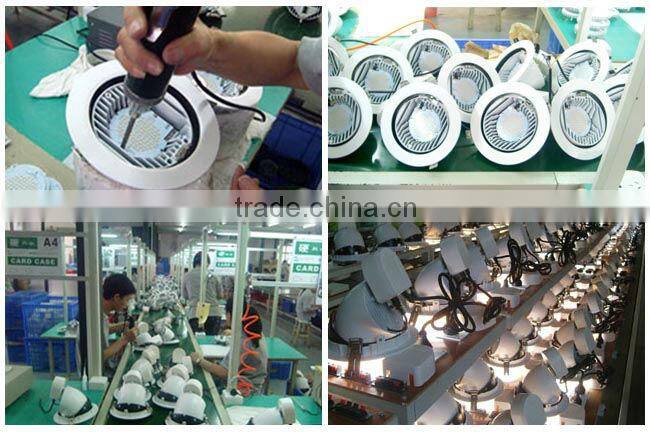

Production pictures for 3 years warranty Samsung 5630 SMD 100lm/w CRI>83 led gimbal downlight
Packing information for 3 years warranty Samsung 5630 SMD 100lm/w CRI>83 led gimbal downlight
Series Products for 3 years warranty Samsung 5630 SMD 100lm/w CRI>83 led gimbal downlight
| Model No. | Specification | ||||||||
| Power | Input Voltage | Color Temperature | Luminous flux | Size | Cutout | Power Factor | LED Brand | CRI | |
| NGE-SMD01-AD20W | 20W | AC100~240V 50~60Hz | 3000k-3500k | 1850±100LM | φ195*179mm | φ165mm-185mm | >0.90 | Samsung SMD LED | >80 |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-AD28W | 28W | AC100~240V 50~60Hz | 3000k-3500k | 2550±100LM | φ195*179mm | φ165mm-185mm | >0.90 | >80 | |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-AD38W (Hot) | 38W | AC100~240V 50~60Hz | 3000k-3500k | 3500±100LM | φ195*179mm | φ165mm-185mm | >0.90 | >80 | |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-AD50W (New) | 50W | AC100~240V 50~60Hz | 3000k-3500k | 4950±200LM | φ250*144mm | φ210mm-230mm | >0.90 | >80 | |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-AD60W (New) | 60W | AC100~277V 50~60Hz | 3000k-3500k | 6000±200LM | φ250*144mm | φ210mm-230mm | >0.90 | >80 | |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-COB01-AD20W | 20W | AC100~240V 50~60Hz | 3000k-3500k | 1800±100LM | φ195*179mm | φ165mm-185mm | >0.90 | Bridgelux COB LED | >75 |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-COB01-AD28W | 28W | AC100~240V 50~60Hz | 3000k-3500k | 2400±100LM | φ195*179mm | φ165mm-185mm | >0.90 | >75 | |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-COB01-AD38W (Hot) | 38W | AC100~240V 50~60Hz | 3000k-3500k | 2900±100LM | φ195*179mm | φ165mm-185mm | >0.90 | >75 | |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-COB01-AD60W(New) | 60W | AC100~277V 50~60Hz | 3000k-3500k | 4900±200LM | φ250*144mm | φ210mm-230mm | >0.90 | Citizen COB LED | >80 |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
Manufacturer of 3 years warranty Samsung 5630 SMD 100lm/w CRI>83 led gimbal downlight
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, LED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology has more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
