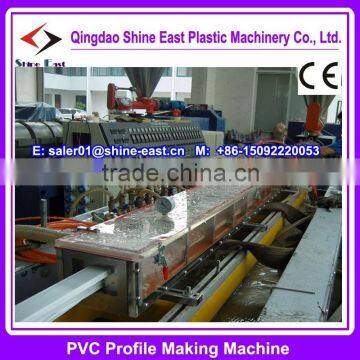

PVC Window Machine/Extruder Machine Plastic/Wood and Plastic Profile Production line

Specification

a) Installed power: 220v/3P/60Hz

b) Raw material: PVC/PE+wood owder

c) Output:30kg/h

Note:the output is different depends on operation and material.

d) centre height of extruder: 1000 mm±50mm(adjustable)

e) operation direction: from right to left

f) cooling water:≤5-20°C ≥0.3Mpa ~2.5T/h

g) compression air: 1.5m3/min >0.5MPa

Configuration

Parameters

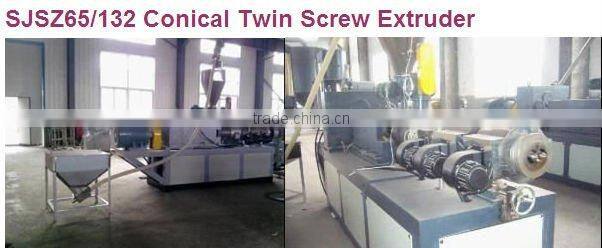

1,SJ65/132 twin conical screw extruder

Screw structure:optimized special model

Barrel structure: with special forced feeding groove In feeding sections

Material of screw and Barrel: 38CrMoAIA

Nitrogen layer depth of screw and barrel: 0.4-0.7mm, the brittleness not more than 2th grade

Main Technical Parameters

2,Mould

a) Structure: special design for plastic profile

b) Materials: 40Cr, high quality alloy

c) The die flow channel is chrome plate, polishing treatment

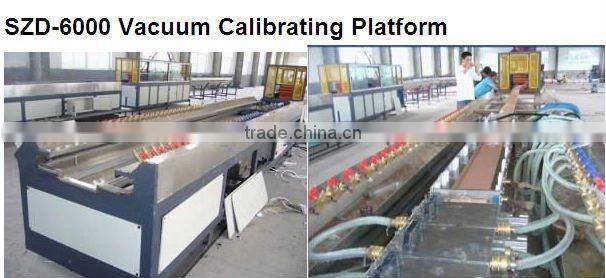

3,Vaccume calibrating table

Calibrating table: 6000mm

Vacuum pump qty: 2units

Vacuum pump power: 4kw/unit

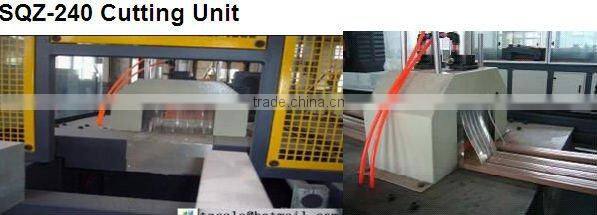

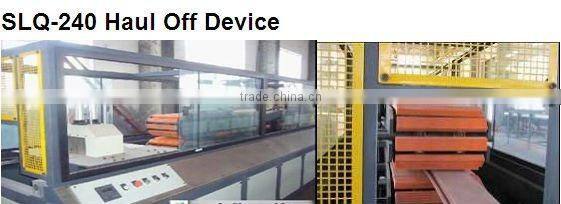

4,Puller and Cutter

Speed-drawing: 0-5m/min

Pressed tightly mode: pneumatic

Max. force-drawing: 30KN

Max clamped forced: 20KN

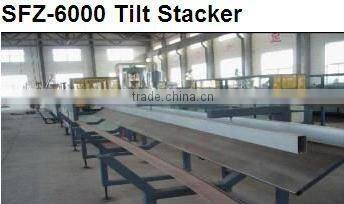

5,Stacker

Length can be overturned: 6000mm

Mode-overturning: synchronous with puller and cutter, and can length-measuring cut and overturn

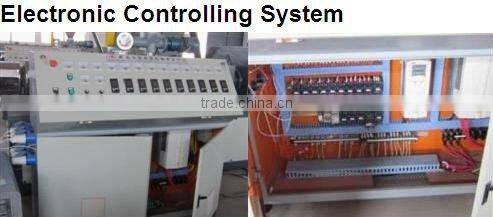

6,Controlling system

a) Temperature control: OMRON,Japan

b) Contactor: Schneider from France

c) Inverter: ABB from Japan

Detail machine pictures or equipment producing

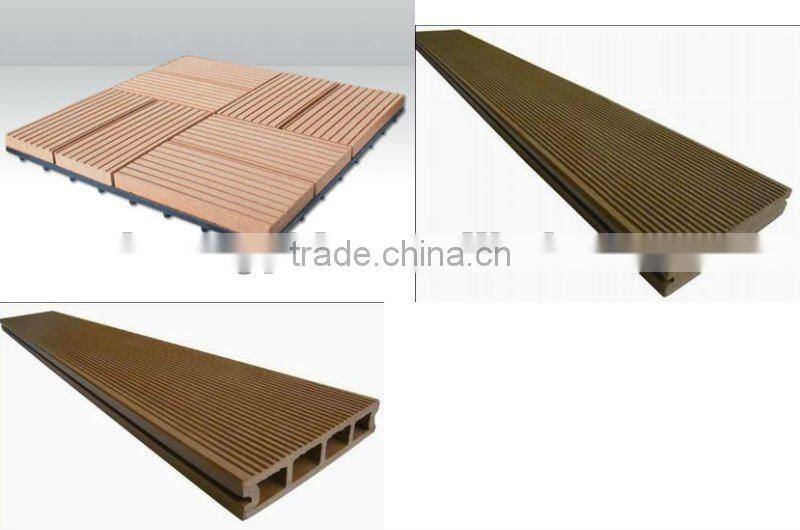

Wood plastic machine sample
