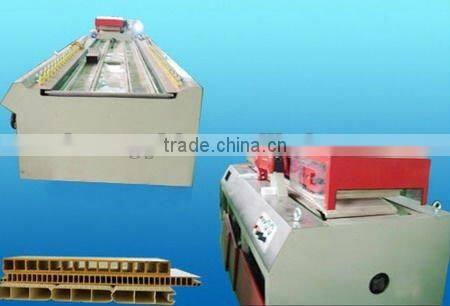

High Speed ! Wood Door Frame Profile Machine
- Qingdao port
- T/T Credit Card
You May Like
-
Plastic Frame Machine/window and Wood Door Frame Production Line/frame Profile Machine
-
Window Frame Machine/window and Door Frame Production Line
-
Window Profile Machine/WPC Window Frame Profile Composite Extruder Machine
-
High Output! Wpc PVC Plastic Window Profile Machine / Plastic Profile Extrusion Machine
-
2012 the New Technology PVC Profile Production Line
-
Wood Plastic Composite Profile Plastic Extruder Machinery
Product Details
| Condition | New | Application | Profile | |
| Plastic Processed | Other, PP/PE+ wood pellet | Screw Design | Double-screw | |
| Automatic Grade | Automatic | Place of Origin | Shandong, China | |
| Brand Name | Shine East | Model Number | SJSZ-65/30 | |
| Certification | CE ISO, CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Wood Plastic Composite Machine1.max capacity:150-220kg/hr.
2.PP/PE/PVC-wood Profile.
3.Max.width 400mm.
Wood Plastic Composite WPC Machine Line - SJMS 65/132
(decking,profile,floor by waste plastic and wood)
CONCENTRATE IN WPC PROJECT
Wood-Plastic Composite(WPC) is made by waste wood materials(sawdust, shells of almonds, cereal, straw, sugarcane, etc) and recycled plastic(PP, PE, PVC).
WPC is paintiable, shaveable, nailable, sawable, drillable. With characteristic of wood and plastic.
WPC are widely used in floor, siding, garden furniture, bathroom, pavilion, etc.
The wasted WPC could be put into production again.
Main Technical Parameters
Item | SJSZ 65/132 | SJSZ 80/156 | SJSZ 92/188 |
Screw Diameters(mm) | 65mm/132mm | 80 | 92 |
L/D Ratio | 22:1/25:1 | 22:1/25:1 | 22:1/25:1 |
Output(Kg/h) | 120-240 kg/h | 250-350 | 400-500 |
Main Driving Power(kw) | 37 | 55 | 110 |
Heating Powder(Kw) | 4 zones, 20Kw | 5 zones, 38Kw | 6 zones, 54Kw |
Complete process:
Milling → Mixing → Extruding → Mold → Product → Calibrating → Hauling off→ Cutting off→ Embossing or polishing→ Final product
Item | Name | Model | Qty | Details |
1 | Twin screw extruder | SJSZ65-132 | 1Unit | With automatic spring loader |
2 | Vacuum calibrating platform | SZD-6000 | 1Unit |
|
3 | Caterpillar haul off | SLQ-240 | 1Unit |
|
4 | Cutting unit | SQG-240 | 1Unit |
|
5 | Tilt stacker | SFZ-6000 | 1Unit |
|
6 | Profile Mould |
| 1Unit |
|
Machinery component

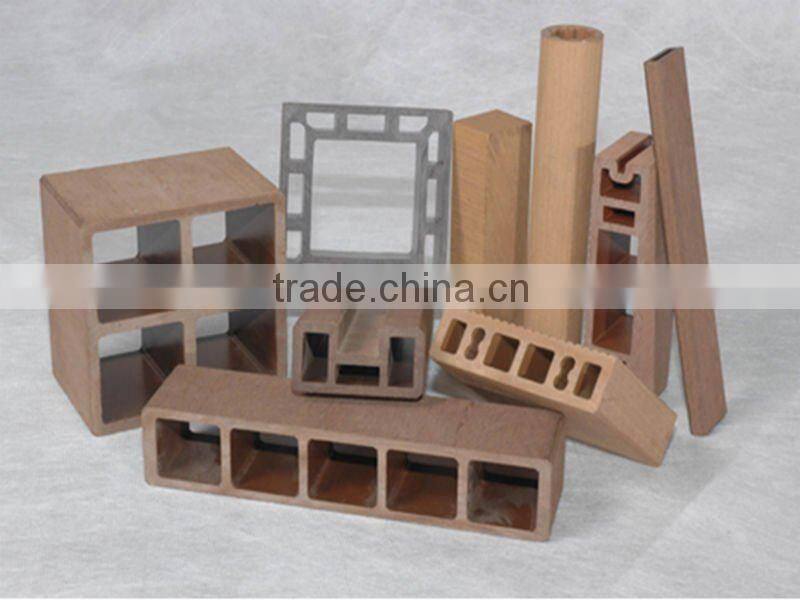

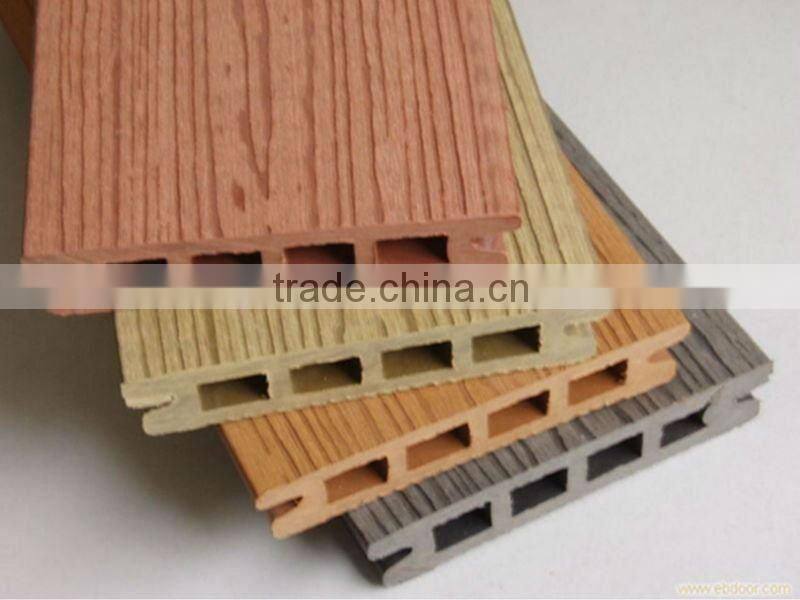

Wood plastic machine sample
