Saccharification electric heating 500L microbrewery equipment

1.

Malt Mill

200Kg/h

Power: 1.5KW;

Roller width adjustable, eliminate the noise.

Little dust, low noise,

work environment has been greatly improved.

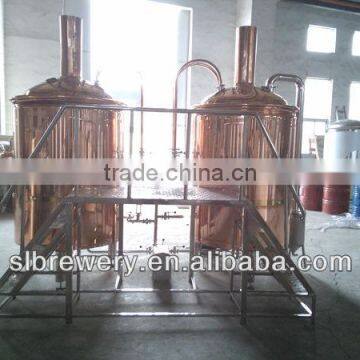

Saccharification System

Useful capacity: 500L.

Motor power: 0.55KW;

Heating way: Steam heating.

Inner-Jacket(SUS304)thickness: 3.0mm;

External-Jacket(SUS 304) thickness: 1.5mm;

Cylinder (Oval, SUS304), thickness: 3.0mm.

Insulation: Polyurethane-thickness: 100mm.

Polishing precision up to Ra0.4µm The host equipment warranty for 5 years

Useful capacity: 1000L.

6

Single tank single control, maitreya plate cooling jacket.

Cooling method: Ethylene glycol or alcohol cooling, bladder cylinder and cone bottom miller cleat set.

Inner (SUS304)thickness: 3.0mm;

External-Jacket(SUS304) thickness: 1.5mm;

Oval head cone bottom, thickness: 3.0mm.

Insulation: Polyurethane-thickness 80 mm.

Ice water tank

Useful capacity:1500L;

1

Inner (SUS304)thickness: 3.0mm;

External-Jacket(SUS304)thickness:1.5mm

Insulation: Polyurethane thickness 100mm;

Temperature measurement mode: temperature probe PT100, temperature transmitting, temperature control panel display.

5.

Refrigerating unit

3800w/h(5HP)

Medium: Environmental protection refrigerants;

Working power: 3.8KW/unit;

Cleaning System

Useful capacity: 50L;

Material all adopt the international standard of 304 stainless steel, all welding are argon protection single-sided, double-sided forming.

Controlling System
