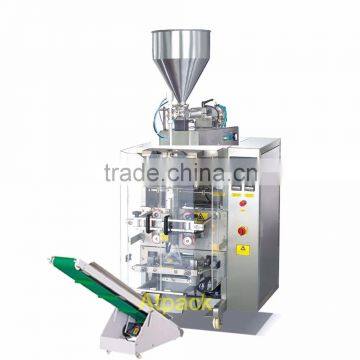

bag filling and sealing machine

Functions

 1. The machine is featured with compact structure, stable, simple operation and covenient to maintain.

2 The imported programmable controller, servomotor, super large display touch screen are the driving and control centre of this machine. The machine is featured with good performance, simple operation.

2. The machine and metering device can finish all packaging processes automatically, i.e. measuring, filling and bag making, date stamp, finished product output.

3. The complete automatic alarm protection function can reduce the waste to the minimum and assist the operator to remove the faults in time.

4.The machine adopts intelligent temperature controller, which can guarantee the top seal looks good and smooth.

5. The machine can also make pillar shaped bag and perforated bag.

Features

*MITSUBUSHI PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;

*precise positioning with servo film transporting system; excellent complete machine performance and nice packing;

* minimize the loss with complete automatic warn protection function;
* supported with metric device, the machine will automatically complete all the packaging processes from measuring, feeding, filling, bag making, sealing, product-output, and so on.
* the way of bag making: the machine can make pillow-type bag and standing bag according to customers requirements.

Technical parameter
     Packing speed:   20-30 bag/min
     Bag size :  (L)50-300mm (W)60-200mm
     Bag making type:  Pillow-type bag, standing bag, punch
     Range of measuring:   150-1300ml
     The maximum width of packing film:   440mm
     Thickness of film:   0.04-0.08mm
     Air consumption:   200L/min 0.7×105Pa
     Main power/voltage:   2.2KW/220V 50-60Hz
     Dimension:   1400×970×1600mm
     The weight:  400kg

THE MACHINE CAN BE EQUIPPED WITH FOLLOWING DEVICES

Electronic weighing system, semi automatic feeding device, spiral type powder measuring device and cup measuring device.
