Rigid Film Forming and Packing Machine Big Blister Packing Machine
- 60 Set / Sets per Month
- Shanghai port or ningbo port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Apparel, Beverage, Chemical, Commodity, Food, Medical | |
| Packaging Type | Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch | Packaging Material | Glass, Metal, Plastic, Wood | |
| Automatic Grade | Automatic | Driven Type | Other, Electirc & Pneumatic | |
| Voltage | 110V/220V | Power | 1KW | |
| Place of Origin | Zhejiang, China | Brand Name | Atpack | |
| Model Number | AP-RF | Dimension(L*W*H) | 6200*1100*2350mm | |
| Weight | 1800KG | Certification | ISO CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Applications:
FP-R rigid film forming filling sealing and cutting machine is the latest developed product of Atpack machinery, the forming material can be PET, PS, EVOH etc. It is widely used in packing all kinds of medical instrument products, cosmetic products, food products etc.
Function:
FP-R rigid film forming filling sealing and cutting machine is a kind of packing machine for multifunctional use, congregates some functions such as stretching, forming, filling, printing (optional), vacuum (optional), sealing, cutting and punching shear etc.
Picture for reference:
Features:
Machine combines function of forming, filling, printing, sealing and cutting etc. Avoid secondary pollution;
Machine can produce various products with different specifications if change the mould;
Easy to change different moulds, about 1 hour for professional worker to change a set of moulds
After forming, the bottom container is strong and can stand a certain pressure;
The maximum thickness of bottom film is 0.6mm;
The material for this machine includes PP, PS, PET, PVC, EVOH etc.
Technical Parameters:
Model | AP-RF |
Formed Materials | PP, PS, PET, PVC, EVOH etc. |
Formed Film | Rigid film |
Paper for Sealing | Dialyzing Paper, Coated Paper, Tyvek, PP, PS, PE, etc. |
Packing Capacity | 10-14cycles/min |
Bottom Film Thickness | ≤0.6mm |
Max. forming size | 280*250mm |
Max. forming depth | 80mm |
Power Supply | AC 380V 50HZ(3 phase) |
Air Consumption | 850L/min |
Dimension | 7300*1100*1960mm |
Weight | 2000KG |
Air Supply | ≥0.6MPa |
Power | 12KW |

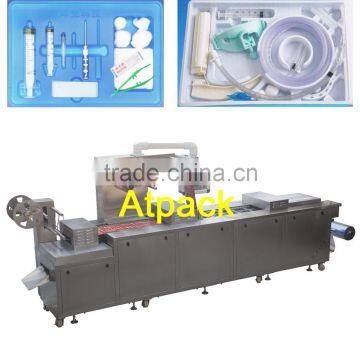

Machine Pictures
Working Process:
